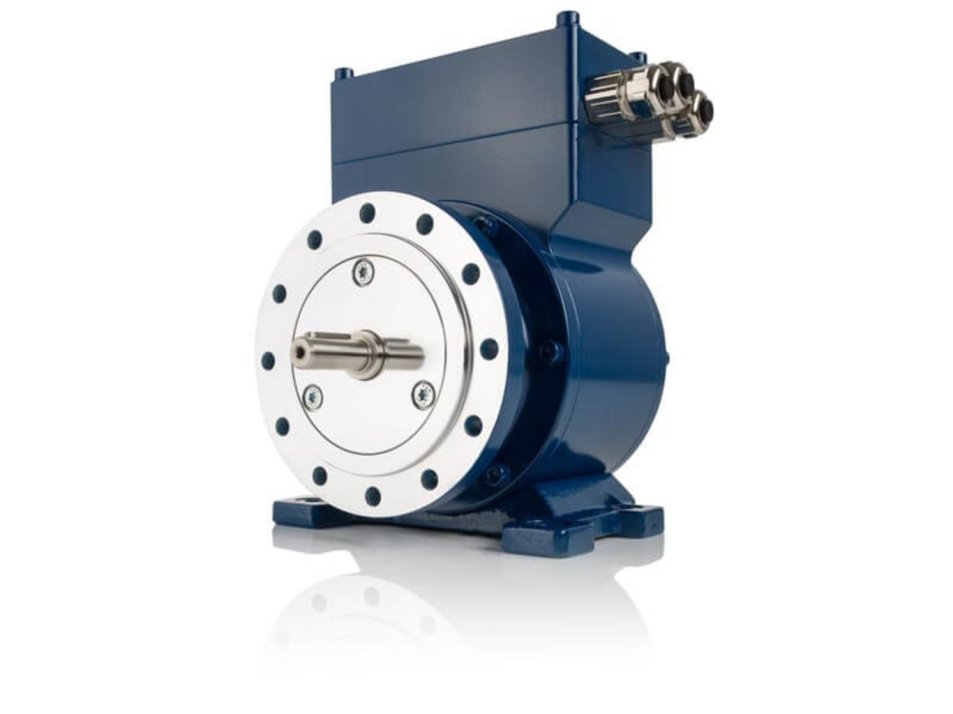

AM..40 AM... 40 / AM...H 40 Absolute multiturn encoder

About the product

The robust multiturn encoders AM ... 40 and AM ... H 40 can be deployed in a wide range of applications for detecting positions and rotational speeds in rolling and steel mills, in mining as well as in ports and crane systems. They provide precise information about the position of the shaft and the number of rotations; for example, they are installed in hoisting equipment in order to be able to determine the exact position at any time. In particular, thanks to the extremely robust foot design, it is possible to attach additional encoders to the other shaft end.

Absolute encoders
AMP 40 / AMPH 40, AMN 40 / AMNH 40, AMS 40 / AMSH 40, AMSI 40 / AMSIH 40

• Hollow shafts up to Ø 20 mm, solid shafts up to Ø 14 mm (flange or foot mounting)
• Heavy-duty design, other encoder can be attached
• High signal quality, up to 16 bit single turn and 12 bit multi turn, variety of interfaces
• Options: Second interface, additional incremental outputs

Construction type

• Solid shaft (flange), Solid shaft (flange / foot), Hollow shaft

Output signals / Interfaces

• HTL, SSI, PROFIBUS-DP, DeviceNet
