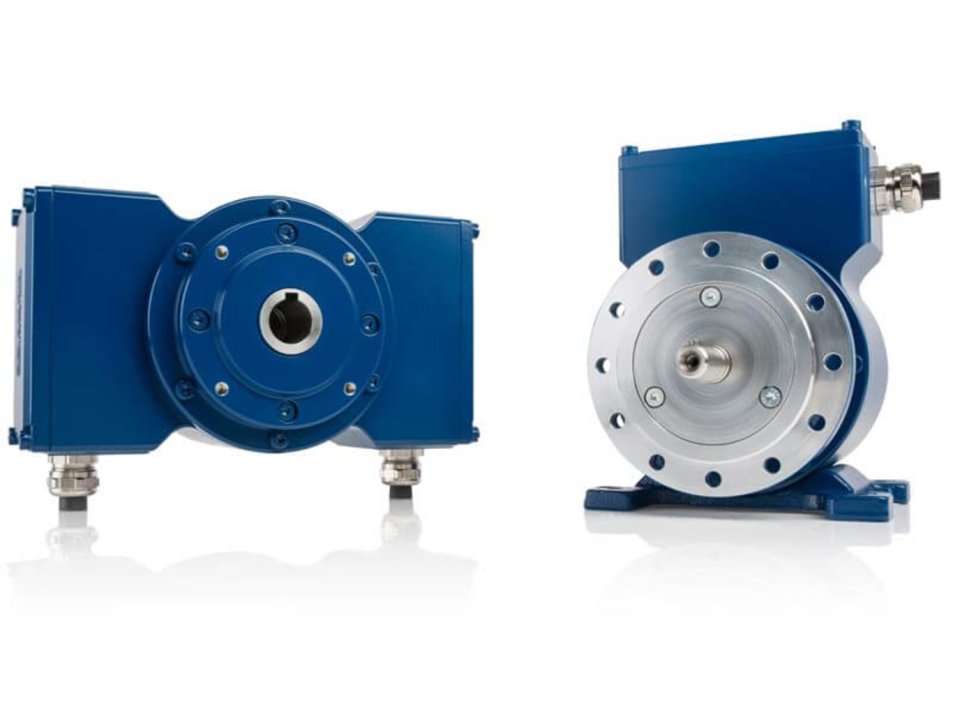

AS... 40 / AS...H 40 Singleturn encoder

About the product

The robust single-turn encoders AS ... 40 and AS ... H 40 can be deployed in a variety of applications for detecting positions in steel and rolling mills, in mining as well as in ports and crane systems. They provide precise information, they are installed for position measurement as well as positioning tasks. In particular, thanks to the extremely robust foot design, it is possible to attach additional encoders to the other shaft end

Absolute encoders
ASE 40 / ASEH 40, ASS 40 / ASSH 40, ASSI 40 / ASSIH 40, ASPA 40 / ASPAH 40

• Hollow shafts up to Ø 20 mm, solid shafts up to Ø 14 mm (flange or foot mounting)
• Heavy-duty design, other encoder can be attached
• High signal quality, up to 16 bit single turn, variety of interfaces
• Options: Second interface, additional incremental outputs

Construction type

• Solid shaft (flange), Solid shaft (flange / foot), Hollow shaft

Output signals / Interfaces

• HTL, SSI, Parallel Gray, EtherCAT
