U-ONE Generation II (LWL) – universal encoder system
About the product
Modular concept for tailor-made solutions. Safe position and speed monitoring – even without safety PLC Optional with SIL 2 certification according to DIN EN 61508 and PL d according to DIN EN ISO 13849 Simplified risk analysis and acceptance

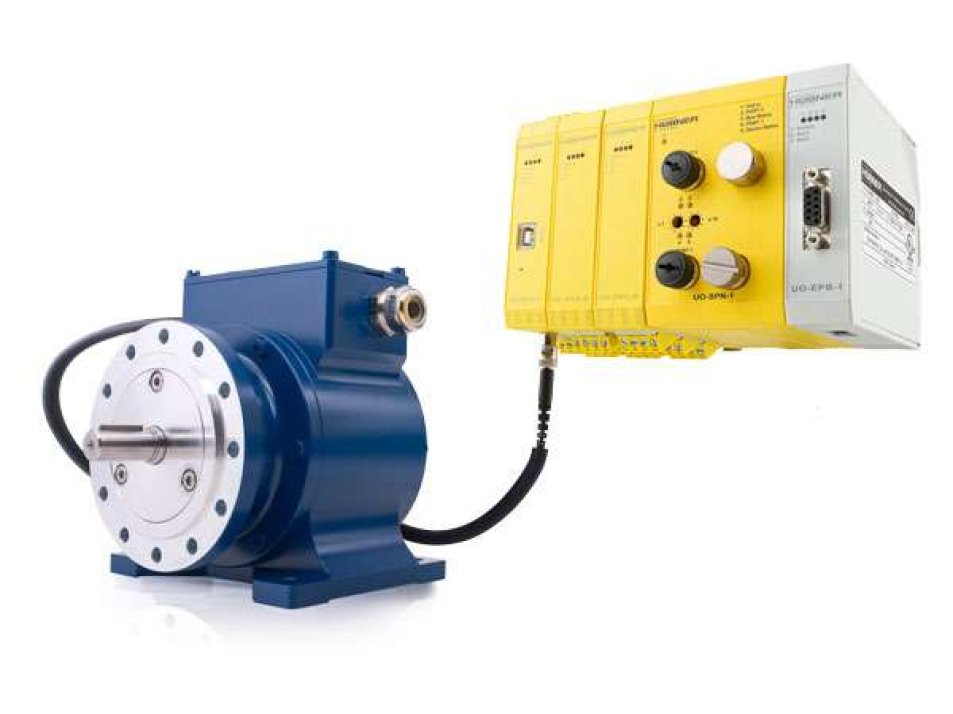

- Modular encoder system U-ONE Generation II (LWL) for position and speed monitoring Measurement directly on the application shaft, connection via just one fiber optic cable to evaluation/function modules in the control cabinet
- Hollow shaft Ø 20 mm, solid shafts up to Ø 14 mm (flange or foot mounting)
- Resolution: 13 bit singleturn / 15 bit multiturn
- Interfaces: PROFIBUS, PROFINET, incremental (HTL), analog 4–20 mA Up to 15 programmable switches (speed/position)
- Option: certified for safety applications up to SIL 2 / PL d
- For further product information see the manufacturer's website
Typical applications
-
Energy
-
Heavy industry
-
Crane & lifting
-
Winch
Certificates and standards
-
SIL 2
Manufacturer
About the product
Modular concept for tailor-made solutions. Safe position and speed monitoring – even without safety PLC Optional with SIL 2 certification according to DIN EN 61508 and PL d according to DIN EN ISO 13849 Simplified risk analysis and acceptance
- Modular encoder system U-ONE Generation II (LWL) for position and speed monitoring Measurement directly on the application shaft, connection via just one fiber optic cable to evaluation/function modules in the control cabinet
- Hollow shaft Ø 20 mm, solid shafts up to Ø 14 mm (flange or foot mounting)
- Resolution: 13 bit singleturn / 15 bit multiturn
- Interfaces: PROFIBUS, PROFINET, incremental (HTL), analog 4–20 mA Up to 15 programmable switches (speed/position)
- Option: certified for safety applications up to SIL 2 / PL d
- For further product information see the manufacturer's website
