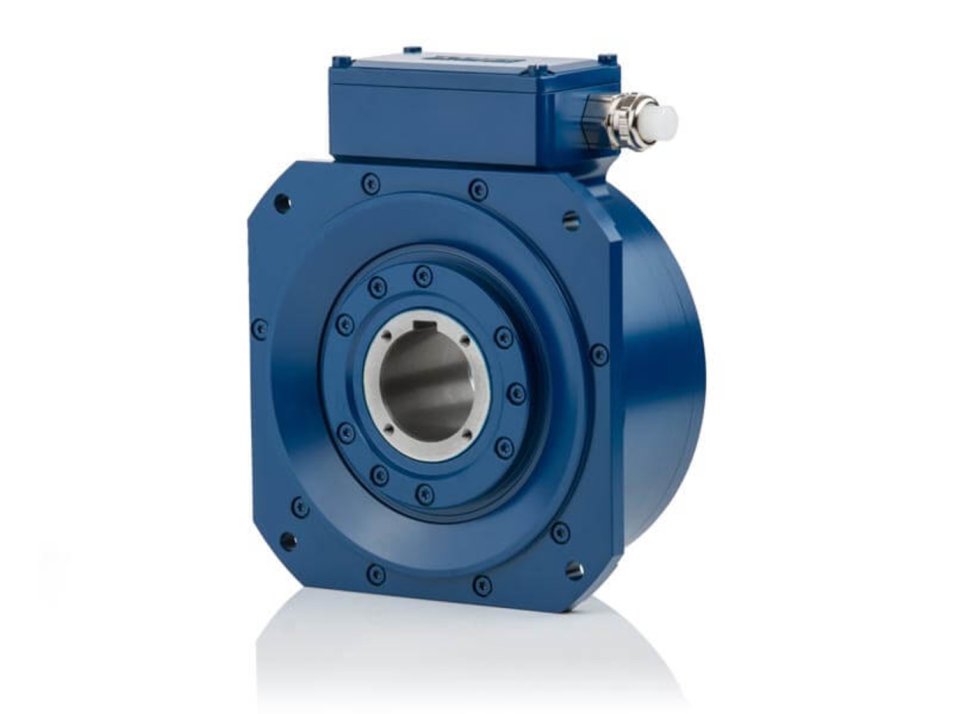

FGHJ 6 hollow shaft incremental encoder up to Ø50

About the product

The FGH 6 incremental encoders for continuous hollow shafts up to Ø 50 mm are mostly mounted on the unused shaft end using an insulated adapter flange or directly on the shaft. Thanks to their flat design, they are ideal for attaching additional sensors such as speed switches, absolute encoders or combinations of these. Furthermore, there is also the option of a redundant configuration with two identical scanning systems and evaluation electronics. This increases safety or facilitates the supply of separate signals to the motor controls and a higher-level controller.

Incremental encoders

• Hollow shafts up to Ø 50 mm
• B14 flange as basis to attach 2 more devices
• Up to 2500 pulses HTL / TTL
• Options: Second signal output, FOC transmitter, overspeed switch, further signal options, isolation sleeve

Construction type

• Hollow shaft

Output signals / Interfaces

• HTL, TTL, Switch output speed
