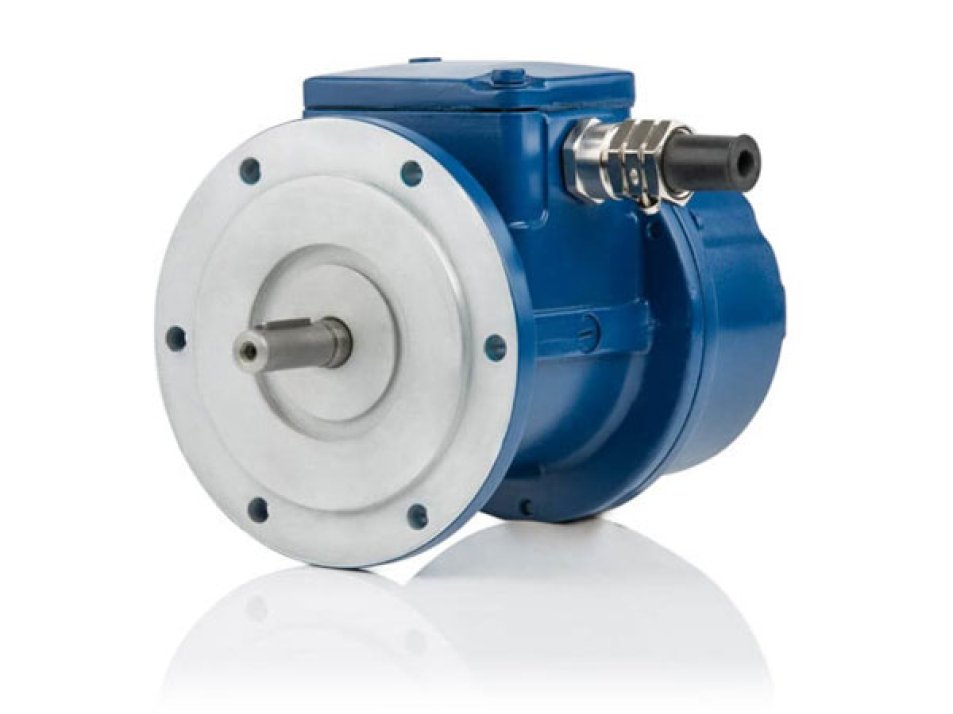

TDP Robust powerful tachogenerator for industrial drives

About the product

Robust, permanently excited tachogenerator for measuring the speed of the application shaft Suitable for larger industrial drives Solid shafts (flange or foot mounting), hollow shafts (tachogenerator with hollow shaft or A4: two-piece without ball bearings) Output signal with high precision linearity 10–1000 V / 1000 rpm Degree of protection up to IP67, temperature compensation up to +100 °C

• Performance Up to 100 W
• Speed Up to 9000 rpm
• Torque Up to 1 Nm
• Voltage (DC) up to 500V
• Current (DC) up to 2.5 A
• Electrical connection Terminal box /cable/customer-specified connector
• Degree of protection up to IP67

Device options/features:

• Double tachogenerators (2 electrically isolated windings, a common magnetic system)
• Double tachogenerators (2 electrically isolated windings, two separate magnetic systems) Magnetic shunting to adjust the voltage during operation
• Humidity and tropical protection
• Reduced voltage tolerance Winding design for no-load voltage possible (on request)

Temperature compensation up to +100 °C

Mechanical options:
Seconds shaft end
special sizes in inches possible

Certificates and approvals UL/CSA (TDP 0.7)
