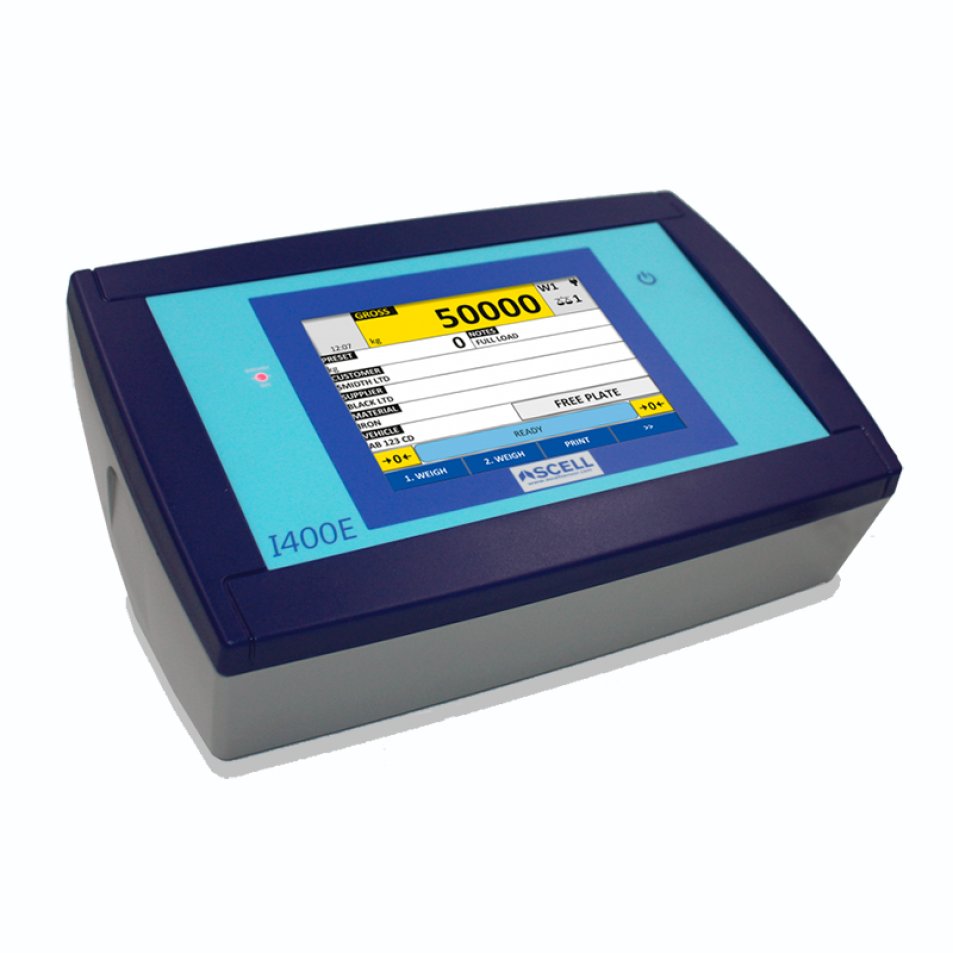

I400E weight indicator

About the product

Digital scale display with large touch screen, suitable for advanced industrial applications. It allows to visualize all the weighing data and to customize the screens, which greatly simplifies the user's operations. Equipped with 3 serial ports, data transfer protocols, fully configurable printing, integrated alibi memory and input from barcode reader/identification chip.

Features:
Graphical touch screen, dimensions lxh = 120x90mm. Fully customizable screens.
Multilingual program.
Touch keyboard type QWERTY, AZERTY, QWERTZ, can be selected.
Waterproof ABS keyboard, IP65 protection.
Dimensions: 278x125x186 mm.
Suitable for use on a table, column or wall.
Calendar clock and permanent data memory.
Alibi memory as standard.
Internal micro SD slot for storing logos (on request).
Features available with PC software
– Configuration, data recording and print format.
– Archiving and storing all information on the PC.
– Full configuration recovery.
– Instrumental calibration with numerical values.
– Customization of the visualizations.
24-bit A/D conversion, 4 channels, up to max. 3200 conv./sec. with automatic selection and up to 8 signal linearization points.
4 independent analog weight reading channels (up to 2 in the E-AF03 version).
Connection of up to a maximum of 16 analog load cells with 350 ohm input resistance (45 cells of 1000 ohm) and the main digital load cells available on the market (in the E-AF03 version).
Max. 10,000e multi-field 3 x 3000e @ 0.3 µV / di version approved for CE-M legal use.
A maximum of 1,000,000 divisions can be displayed for internal factory use with an internal resolution of up to 3,000,000 points.
Connection to printers and labeling machines with free programming of print formats.
Power 110-240 Vac.
