I800 weight indicator

About the product

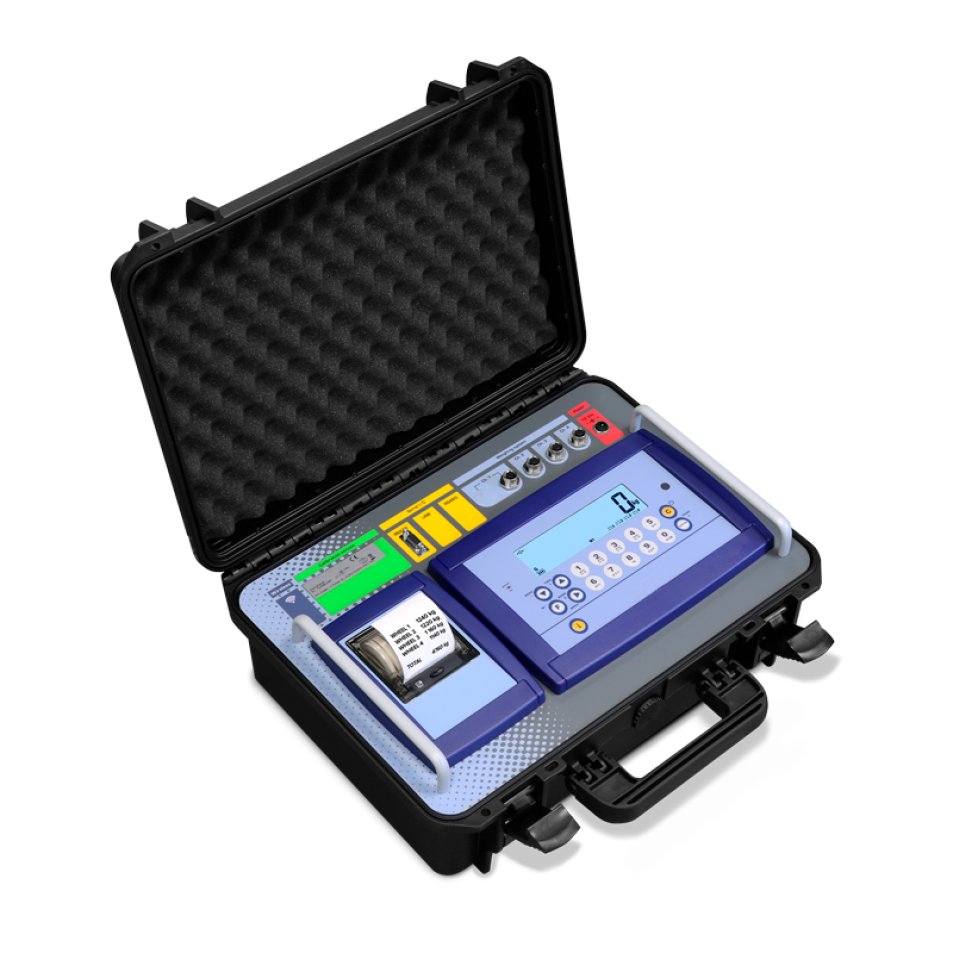

Multifunction digital weight indicator in Rack version complete with 4 connectors for connecting the platforms, built-in rechargeable battery, battery charger, thermal printer, time/date and case. It is particularly suitable for vehicle weighing. CE-M approved (OIML R-76 / EN 45501).

Features:
Waterproof functional keyboard with 17 keys.
LCD backlit display with 6 25-mm high contrast digits and with indication of active functions.
Metal stand-type box.
A/D 24-bit 4-channel sigma-delta conversion, up to 200 conv./sec autoselect and up to 8 signal linearization points.
Equipped with 4 connectors for connection to 4 platforms (up to 8 optional).
Can be connected to up to 8 analog load cells with 350 Ohm input resistance.
Built-in rechargeable battery (10-hour minimum operating time, 8-hour charge) with mounted external 12 Vdc / 230 Vac adapter.
Equipped with thermal printer, time/date, case for house indicator and space for other accessories.
Dimensions: 325x460x170 mm; Total weight: approx. 5 kg

Use:
vehicle weighing applications.
