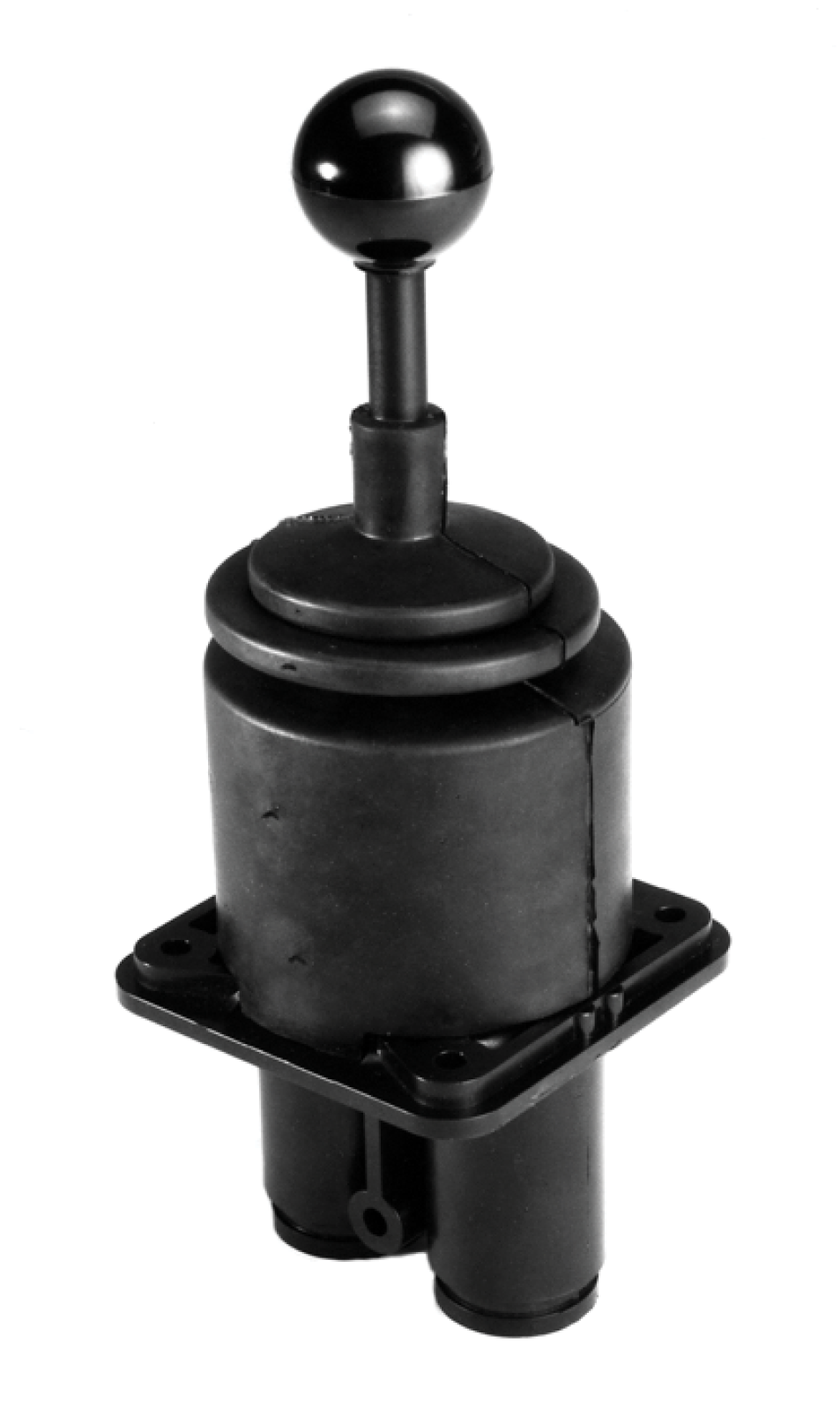

C60 Two-axis joystick controller
About the product
Arens C60 two-axis joystick control provides an integrated solution for controlling two sections with one joystick.
Key info
±0.50 in (±12.7 mm) output stroke
Symmetrical ±30° input movement
Either plus or X-axis orientation for rotary installation
Centering springs for each output
Working loads of up to 100 lbs (455N) on each output
The C61 series for push-pull cables has a standard 2" output stroke (42C or 62B types)
C62 series intended for rod coupling outputs
Neutral lock with 2 or 3 positions
Options:
QUADCO® grips with electric switches
1" stroke cable for installations with minimal cable bends and requirements for suitably short stroke
Lock to prevent accidental movement of the outputs
Input motion limiter
Bent feed levers to place the lever in a convenient position for the vehicle operator
Typical applications
-
Off Highway Automotive
-
Hydraulics & Mechatronics
