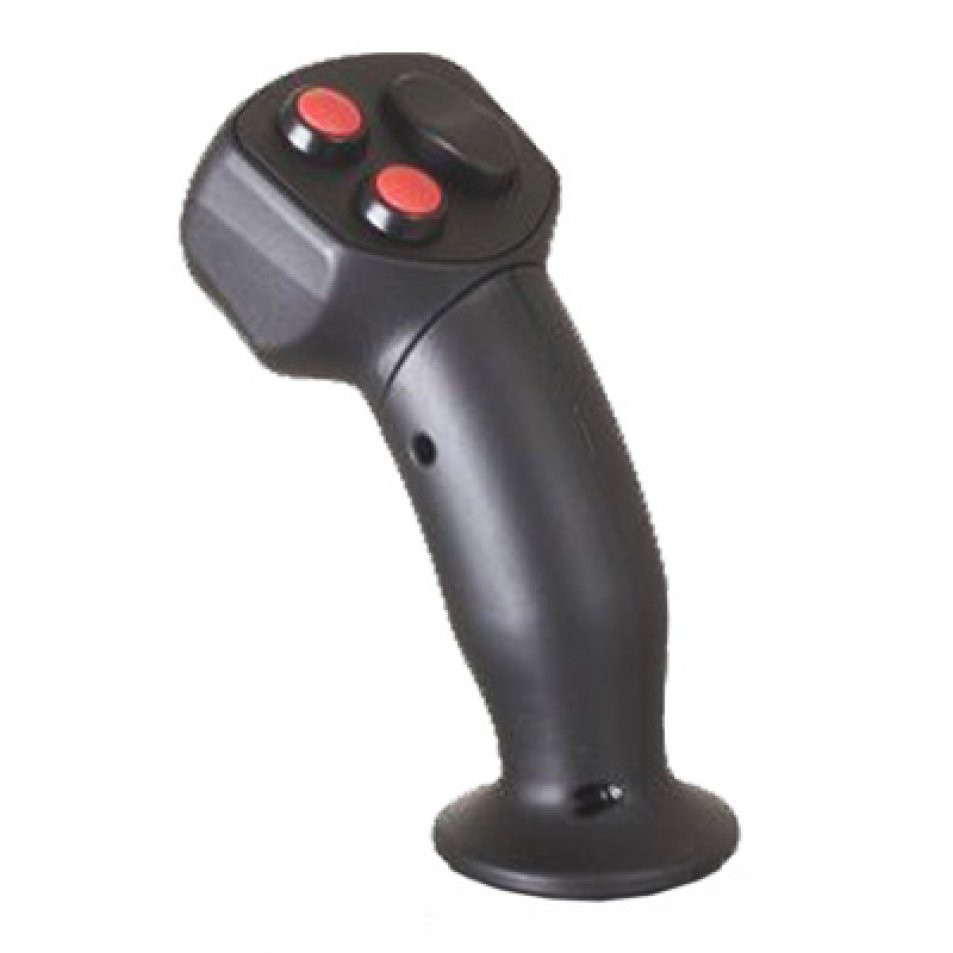

A-handle for JC150, JC1500, JC6000 and JC8000
About the product
This style is designed to meet the demands of complex control systems
The 'AMF' range of ergonomic multifunction hand grips can be fitted with a combination of analogue outputs, push buttons and 'Person Present' switches. The grip can be supplied with two independent analog outputs generated by proportional rockers which, in turn, provide auxiliary directional switching in addition to the potentiometric output.
Breakout force 5N at the end of the rocker
Operating force 15N at the end of the rocker
Mechanical movement ±10° (±1°)
Electrical movement ±9° (±1°)
Expected life (operations) 5 million
Load current (Max) 200mA
Power dissipation @ 25°C 0.25W
Track resistance Will match JC150 resistance*
Output voltage Will match JC150 output*
Center tap angle ±1°
Directional or center off switch Standard
Switch gap 2.5° either side of centre
Switch supply voltage 35Vdc
* Unless otherwise requested.
