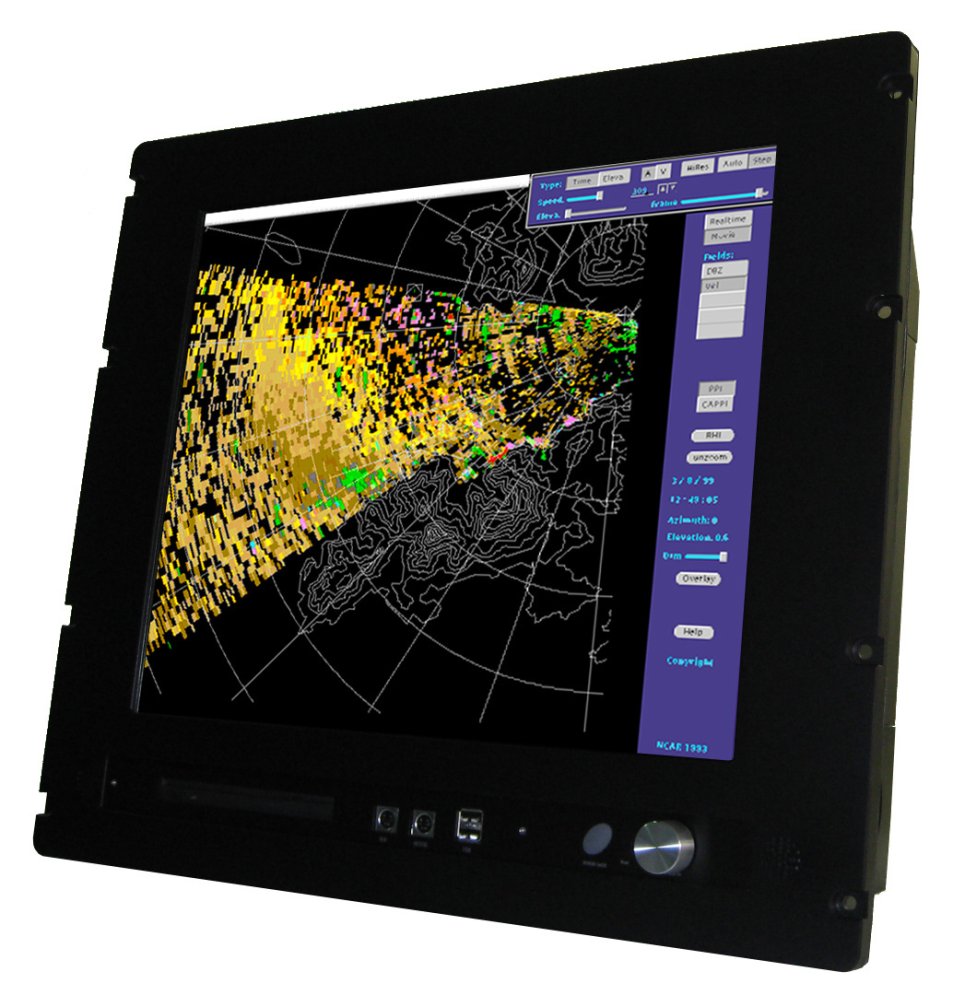

MPAC-190 19" Panel PC, Intel Core2 Duo, IEC60945 approved
About the product
19" TFT color display • Max. resolution 1280x1024 pixels • Intel Core2 Duo • 1Gb RAM • 64Gb HDD (SSD)• Power supply 90/264VAC - 49/64Hz • Panel mount • Approved for maritime applications (IEC60945)
FEATURES
The combination of the reliable design of the marine TFT-LCD modules, together with industrial computer board make this product suitable for customer applications where space is critical, and full function is desired in a single unit. In particular, the Full-size CPU card from factor allows full flexibility when it comes to processor choice. Because of multiple useful standard components this is an highly attractive commercial package.
This unit is equipped with an Intel® Core™2 Duo Desktop Processor E6400, accepts up to 4GB DDRII DRAM features.
RS232 to control Brightness/Alarm, brightness is adjustable from 0 to 100%.
PRODUCT SPECIFICATIONS
TFT Technology
• 19 inch viewable image size
• LPTS Thin Film Transistor (TFT) active matrix
TFT Characteristics
• Pixel Number: 1280 x 1024 (SXGA)
• Pixel Pitch: 0.294(H) x 0.294(V) mm
• Response Time: 12ms (typical), "back" to "white"
• Aspect Ratio: 4:3
• Contrast Ratio: 900:1 (typical)
• Light Intensity: 300cd/m2 (typical)
• Viewable Angle: +/-85deg. (my)
• Active Display Area: 376.32(H) x 301.056(V) mm
• Max Colors: 16.7 million (8-bit color)
Software
• MicroSoft Windows XP Embedded Service Pack 3
Computer Specifications
• Processor: Intel® Core™2 Duo Processor
• System Chipset: Intel Q965 Chipset
• BIOS: Award BIOS, ACPI supported
• Memory Slot: 1GB DDRII DRMA (up to 4GB)
• Option VGA: Intel Q965 graphics GMA3000
• SATA II Controller: 3.0 Gb/sec/4 ports
• SATA II HDD drive: XPG 2.5" SSD 64GB
• DVD-ROM drive: 1 x 8x DVD +/-R/W ROM
• PCI Slot: 3 x PCI2.2 Slots 32-Bit, Full Length
• Parallel Port: 1 x SPP/EPP/ECP Port
• Ethernet: Dual Gigabit LAN 10/100/1000Mbps
• USB Port: 4 x USB Ports (2 in front, 2 in side)
• Keyboard Port: Standard PS/2 mini DIN Connector
• Mouse Port: Standard PS/2 mini DIN Connector
Power Specifications
• 300W ATX, 90-264 VAC Autoranging (49-64Hz)
• Power Consumption 180W
MECHANICAL DESCRIPTION
Physical Dimensions
• 513.2 (W) x 444.4 (H) x 152 (D) mm
• Weight: 18.3kg
User Controls (On front bezel)
• Power On/Off (push button)
• Brightness Control knob
• Reset button
Environmental Considerations
• Operating Temperature -15°C to +55°C, Humidity 8% to 95%
• Storage Temperature -20°C to +60°C, Humidity 8% to 95%
• SSD Shock Resistance: 1500G/0.5ms
Safety Considerations
Even though the test conditions for bridge units provide for a maximum operating temperature of 55°C, continuous operation of all electronic components should, if possible, take place at ambient temperatures of only 25°C. This is a necessary prerequisite for long life and low service costs.
Options
• Pedestals for table top, deck and bulk head installations.
• One serial board 4 x opto isolated serial ports
• Keyboard/rollerball: Several options with dimmable
