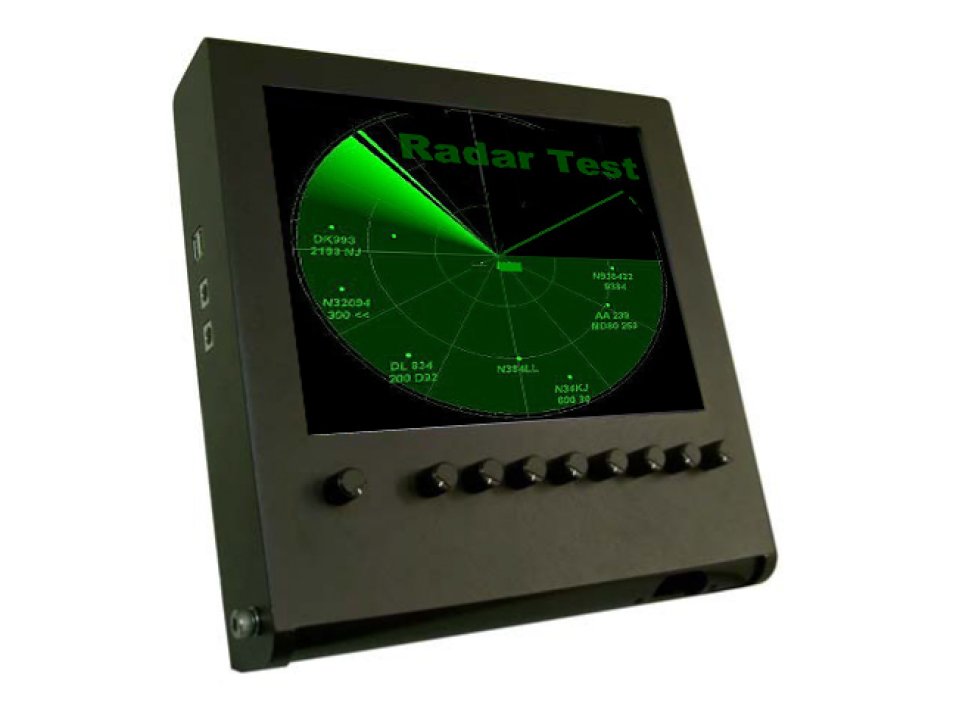

Pilot-PC 12.1" Panel PC, AMD Geode LX700

About the product

12.1" TFT color display • Max. resolution 1024x768 pixels • AMD Geode LX700 433MHz • 512Mb RAM • 4Gb IDE flash disk drive • Power supply 9-36VDC • Optional touchscreen

PRODUCT SPECIFICATIONS

System
• Processor: AMD Geode LX700, 433MHz
• Memory: 512MB SO-DIMM DDR (333/400 SDRAM)
• LCD/CRT Controller: 2D VGA controller integrated on AMD Geode LX700, Up to 64MB shared memory
• Ethernet: Realtek 8100C 10/100 LAN RJ-45 on board
• I/O Port: 2 x RS-232, 1 x PS/2 mouse port, 1 x PS/2 keyboard port, 1 x VGA port, 3 x USB 1.1 ports (2 on the edge , 1 inside the cabinet), 1 x 10/100M LAN port
• Storage Disk Drive: 4GB IDE flash disk drive
• OS: Windows XP

Mechanical
• Construction: Heavy-duty aluminum chassis
• Dimensions: 311(W) x 319(H) x 70(D) mm
• Gross Weight: 6kg

Environmental
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -20°C to 60°C
• Storage Humidity: 10% to 90% @ 35°C, non-condensing

Power Supply
• DC 9~36V input 60W
• Input: 9VDC ~36VDC
• Output (Max.): +12V @ 5A

LCD
• Display Type: 12.1" TFT LCD
• Max. Resolution: 1024x768
• Max. Colors: 262,144
• Dot Size: 0.240mm x 0.240mm
• Luminance (Typical): 450 cd/m2
• Viewing Angle: 160°(H) / 160°(V)
• Back Light MTBF: 50,000 hrs

Touch Screen (Optional)
• Type: 5-wire, Analog Resistive
