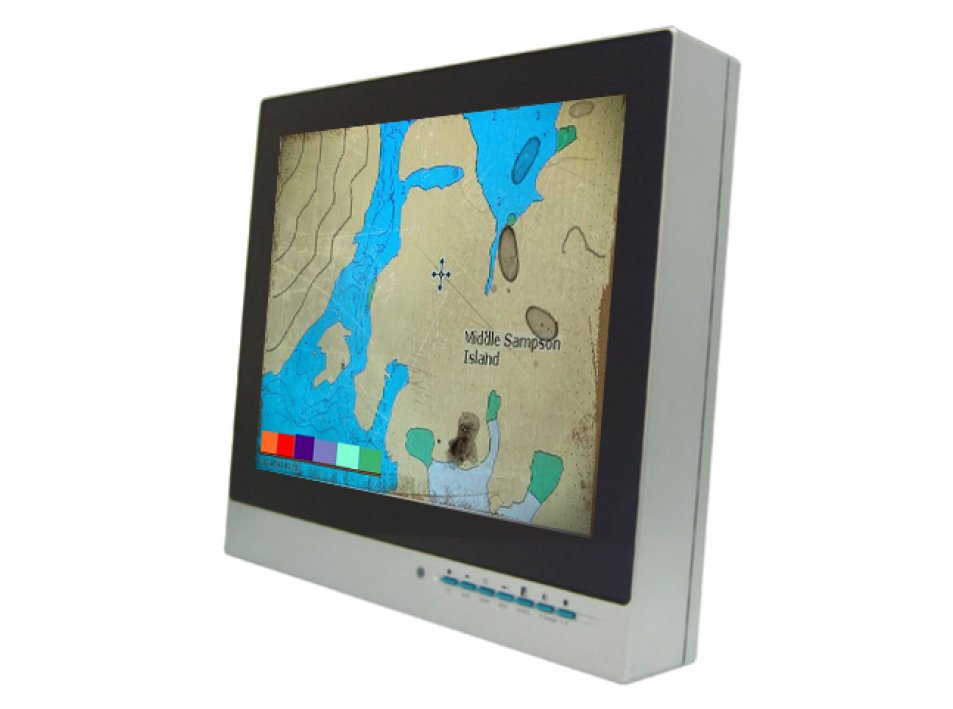

YAMO-120XWP 12.1" Display, Panel mount, IP67 (submersible)

  • YAMO120XWP
YAMO120XWP
YAMO120XWP

About the product

12.1" TFT color display • Max. resolution 1024x768 pixels • Aspect ratio 4:3 • RGB input • Power supply 9-36VDC • Panel mount • IP67 protected (fully submersible)


FEATURES

• The 12.1" YAMO-120XWP is a NEMA 6P (IP67), waterproof LCD monitor display that is fully submersible.
• This XGA resolution, 450 nits high brightness.
• Wide viewing angle (160/160)
• High contrast ratio (700:1)
• The brightness is adjustable from 1 to 100%, RS232 to control Brightness/Alarm


PRODUCT SPECIFICATIONS

TFT Technology
 • 12 inch viewable image size
• LPTS Thin Film Transistor (TFT) active matrix

TFT Characteristics
 • Pixel Number: 1024 x 768 (XGA)
• Pixel Pitch: 0.240(H) x 0.240(V) mm
• Aspect Ratio: 4:3
• Response Time: 25ms(typical), "raising" to "falling"
• Contrast Ratio: 700:1 (typical)
• Light Intensity: 450cd/m2 (typical)
• Viewable Angle: 80°(Up/Down) / 80°(Right/Left) (Typ)
• Active Display: Area 245.76(H) x 184.32(V) mm
• Max Colors: 262.44 (6-bit colour)
• Shock: 200G, 2ms, half sine wave
• Max Colors 1.5G 10-300Hz, 10min/cycle

Synchronization
• Auto detects VGA>XGA
• Support for Sync-on-Green (SOG)
• RGB input current: 0-0.7V with 75Ohm
• Supports up to 165MHz

Supported Signal Inputs
 Resolutions:
• VGA 640 x 480
• SVGA 800 x 600
• XGA 1024 x 768 *
* Recommended for optimum picture quality

Power Specifications
 • Power Supply Options: wide range Input: from 9VDC to 36 VDC
• Power Consumption: Operating 30W (max)


MECHANICAL DESCRIPTION

Physical Dimensions
 • 300 (W) x 270 (H) x 50 (D) mm
• Weight: 4.66 kg

Input Signal Terminal
 • Use LTW Waterproof 18 pin connector, includes 1 x VGA, 1 x RS232 and DC Power terminal

User Controls (front)
 • On Screen Display control (OSD)
• Brightness Control

Environmental Considerations
 • Operating: Temperature -30°C to +70°C, Humidity 20% to 90%
• Storage: Temperature -40°C to +80°C, Humidity 20% to 90%

Safety Considerations
 Even though the test conditions for bridge units provide for a maximum operating temperature of 70°C, continuous operation of all electronic components should, if possible, take place at ambient temperatures of only 25°C. This is a necessary prerequisite for long life and low service costs.
