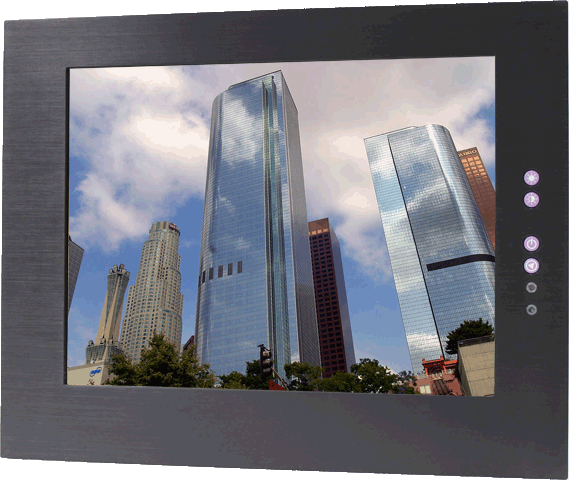

YAPC-120XWPT 12.1" Panel PC, Intel Atom, IP67, Touchscreen

  • YAPC120-1
YAPC120-1
YAPC120-1

About the product

12.1" TFT color display • Max. resolution 1024x768 pixels • Intel Atom • 1Gb RAM • 4Gb HDD • Power supply 9-36VDC • IP-67 Water-Proof Sealing Enclosure • Sunlight-Viewable Display with Low Reflection Touch Panel


FEATURES

• 12.1" XGA Color TFT LCD Display
• Onboard Intel Atom Processor N270
• Sunlight-Viewable Display with Low Reflection Touch Panel
• IP-67 Water-Proof Sealing Enclosure
• Function keys for 1% ~ 100% brightness control
• Software to control Alarm/Brightness
• Stable and wide range 9~36VDC input
• VESA standard for flexible mounting kits


TECHNICAL DESCRIPTION

TFT Characteristics
 • LCD Size: 12.1"
• Pixel Number: 1024 x 768 (XGA)
• Pixel Pitch: 0.240(H) x 0.240(V)mm
• Response Time: 25ms (typical)
• Aspect Ratio: 4:3
• Contrast Ratio: 700:1 (typical)
• Light Intensity: 450cd/m2 (typical)
• Viewable Angle: +/-80deg. (my)
• Active Display Area: 245.76(H) x 184.32(V)mm
• Max Colors: 262,144

Software
• MicroSoft Windows XP Embedded Service Pack 3

Computer Specifications
 • Processor: Intel Atom Processor N270
• System Chipset: Intel 945GSE Chipset
• BIOS: Award BIOS, ACPI supported
• Memory Slot: 1GB DDRII SO-DIMM RAM (max)
• Optional VGA: IntelR 945GSE graphics
• HDD drive: Apacer SDM - 4GB
• Ethernet: Intel82574L Gigabit Ethernet
• USB Ports: 3 x USB Ports
• I/O Ports: 1 x RS-232 Port

Touchscreen
• Type: Five-Wire Analog Resistive (Non-Glare)
• Transparency: 82±5%
• Controller: USB interface

Power Specifications
 • 9-36V DC Input
• Power Consumption 30W (max)


MECHANICAL DESCRIPTION

Physical Dimensions
 • 328 (W) x 261.5 (H) x 50 (D) mm
• Weight: 4.63kg

User Controls (On front bezel)
 • Brightness Control
• Power On/Off
• Reset button

Environmental Considerations
 • Operating: Temperature 0°C to +60°C, Humidity 10% to 90%
• Storage: Temperature -20°C to +80°C, Humidity 10% to 90%

Safety Considerations
 Even though the test conditions for bridge units provide for a maximum operating temperature of 60°C, continuous operation of all electronic components should, if possible, take place at ambient temperatures of only 25°C. This is a necessary prerequisite for long life and low service costs.
