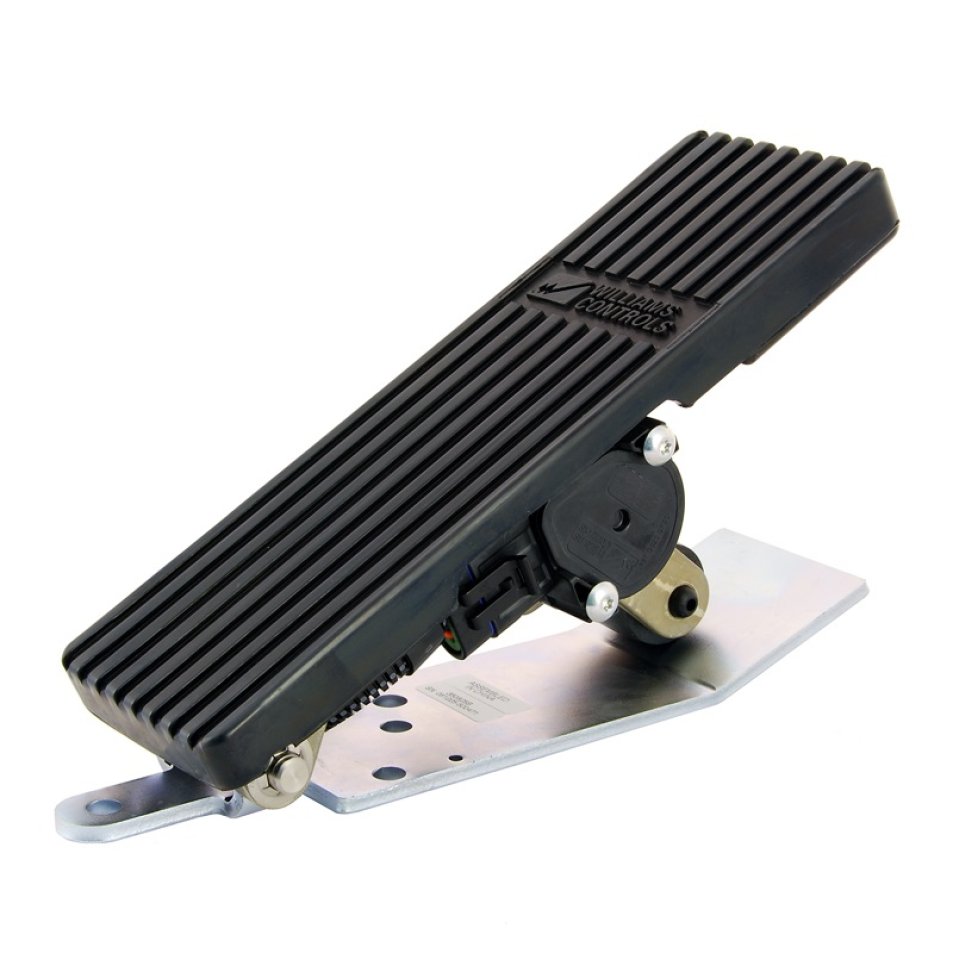

WM-526 - Electronic floor pedal, Heavy Duty

About the product

Designed for all commercial vehicle applications and highly customizable The WM-526 electronic floor pedal is designed for all commercial vehicle applications and highly customizable. Available in kickdown and non-kickdown versions to accommodate customer applications.

Designed for all commercial vehicle applications and is highly customizable
The WM-526 electronic floor pedal is designed for all commercial vehicle applications and is highly customizable. Available in kickdown and non-kickdown versions to accommodate customer applications.
The device is equipped with a Hall effect non-contact sensor that can be programmed for analog output and/or integrated switches. The electronics are IP67 sealed and highly EMI resistant (SAE J1113). Additionally, the device can be customized with contact or PWM output sensors.

The WM-526 features a robust design with a corrosion-resistant cast aluminum pedal and a coated steel base plate. The pedal is available in three pedal angles: 28.5°, 35° and 45°. The pedal is equipped with a rubber cover for improved foot grip.
