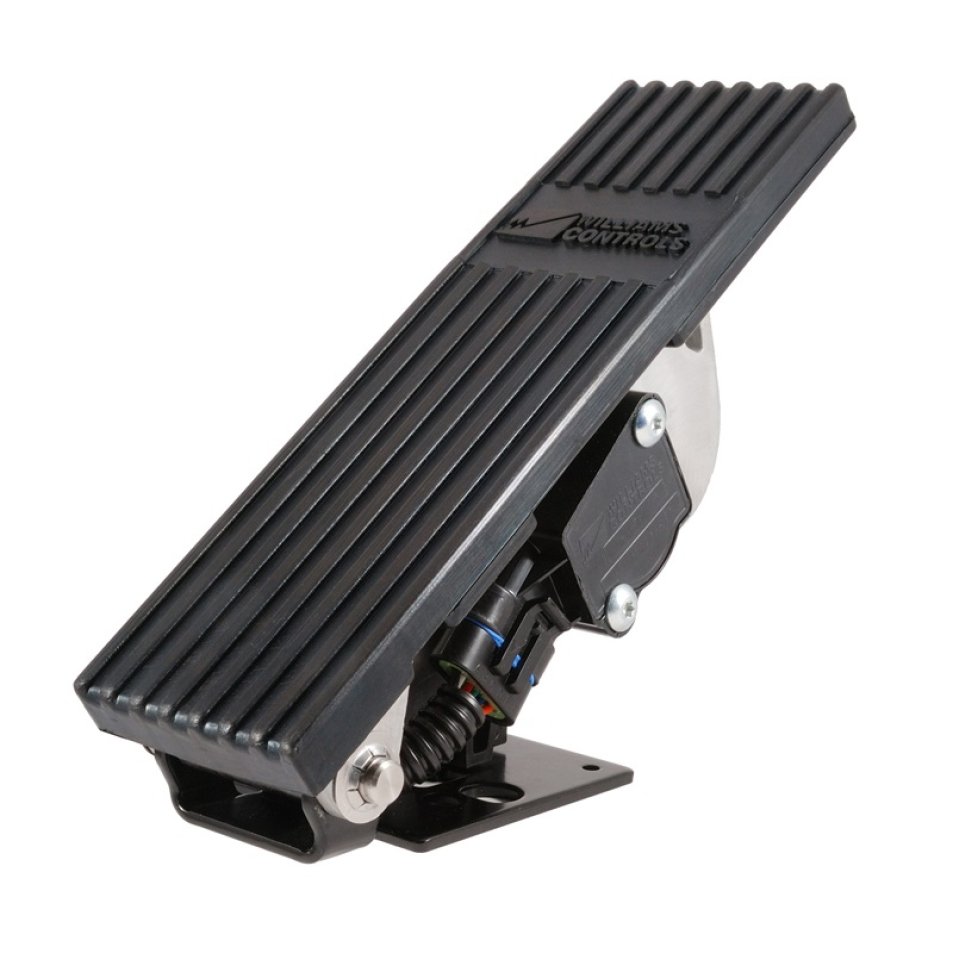

WM-532 - Electronic floor pedal, narrow profile

About the product

Designed for all commercial vehicle applications, where the narrow profile allows it to be mounted in limited floor space.

The WM-532 slim profile electronic floor pedal is designed for all commercial vehicle applications, where its slim profile allows it to be mounted in limited floor space. Installation of the pedal is made easy by allowing the pedal assembly to swing away from the mounting plate, providing access to the mounting bolts. After installation, the pedal assembly can be snapped back into its normal operating position.

The WM-532 can be adjusted for pedal angles between 35° and 52° and has a constant stroke of 17.5°. The sensor harness allows the use of a variety of electronic connectors based on customer specifications.

The device is equipped with a Hall effect, non-contact sensor that can be programmed for analog output and/or integrated switches. The electronics are IP67 sealed and highly EMI resistant (SAE J1113). Additionally, the device can be customized with contact or PWM sensors.

The WM-532 offers a robust design with a corrosion-resistant cast aluminum tread and a coated steel base plate. The base plate can be customized for various mounting configurations and the tread can be supplied with a rubber cover for improved foot grip.
