WM-536 - Electronic floor pedal

About the product

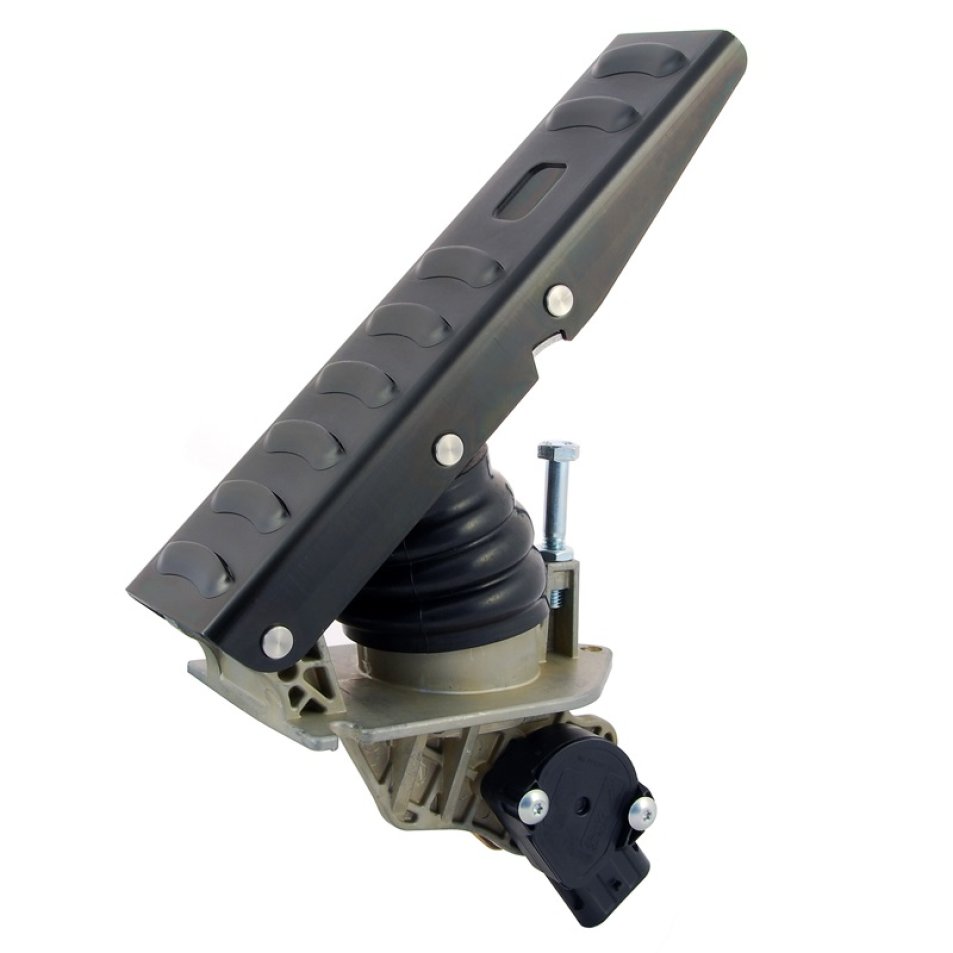

The WM-536 electronic floor pedal is designed for all off-highway, commercial vehicles. It is most often used as a drop-in replacement for mechanical throttle systems as they transition to drive-by-wire.

The design of the unit allows for under-deck placement of the pedal mechanism and its sensor. Equipped with a Hall Effect non-contact sensor, the WM-536 can be programmed for analog output and/or integrated switches. The electronics are IP66 sealed and highly EMI resistant (SAE J1113). The WM-536 pedal angle is 45° from the cab floor. The throttle control is a metal construction, with the pedal board having built-in valves for improved foot grip.

• 45° pedal
• FMVSS-124 and 302 compliant
• Ratiometric APS output
• Form C IVS output
• Insulated APS/IVS sealed
• Electronics IP66 sealed
• +5V operation
• -40°C to +85°C operating
• Integrated preload spring
• Metripak 150 Series Compatible Connector
• Protected against electrical misconnection (indefinite duration)
