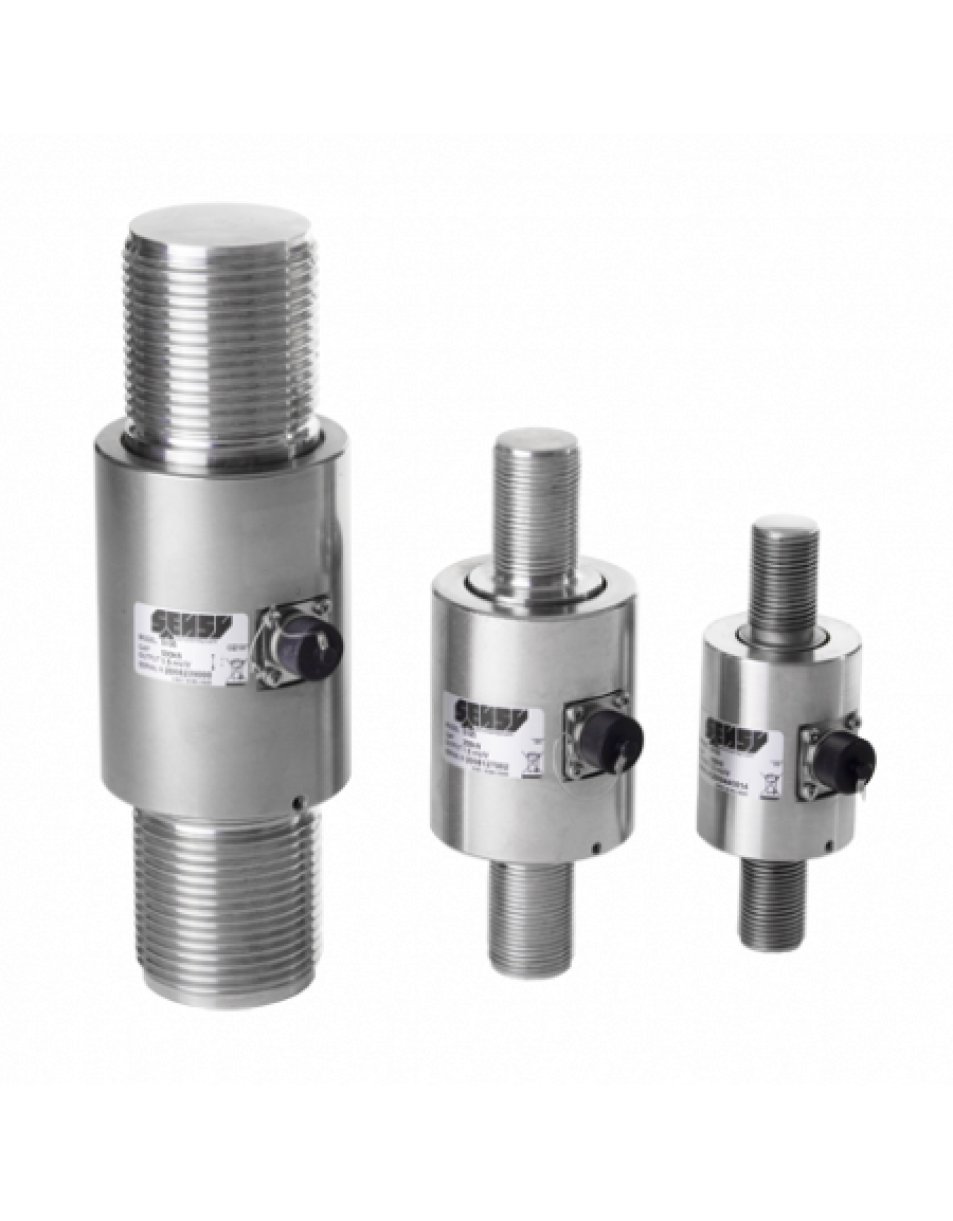

5100-5105 Tension and Compression Load Cells (Very High Capacity)

About the product

Universal load cells that combine accuracy, stability and easy installation. Industrial force measurement and force measurement in test benches and hanging loads. From 10 kN (1 t) up to 50 MN (5,000 t)

Key features

- Wide range of capacities : 10 kN (1 t) up to 50 MN (5000 t)
- Easy to install, compact design
- Protection IP 66
- Material : Stainless steel (5100), Nickel plated steel (5105)
- Available options (non-exhaustive list):
o high service temperature (180 °C)
o ATEX intrinsic safety Ex II 1GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80°C Da
o 0..10 V or 4..20 mA output signal
- Also available as standard reference load cells following ISO 376 (EN10002/3) (Class ''0.5'' and ''00'') (see specific data sheet)

The SENSY's load cells 5100-5105 are perfectly designed for the following applications
- Industrial force measurement
- Force measuring on test bench, weighing of hanging load

CAPACITIES
(10) - (15) - 20 - 30 - 50 - (75) - 100 - (150) - 200 - 300 - 500 kN
(0.75) - 1 - 1.5 - 2 - 3 - 5 - 7.5 - 10 - 15 - 20 - 30 - 40 - 50 MN
