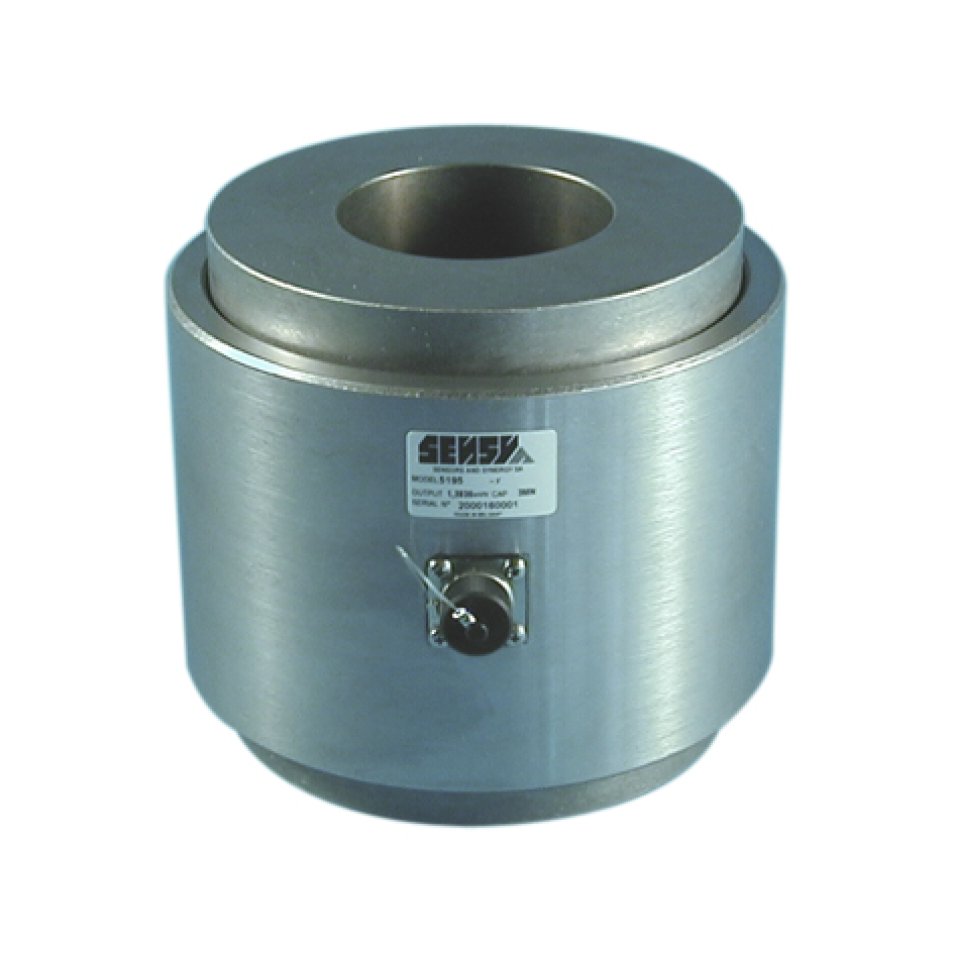

5190-5195 TROUGH HOLE (ANNULAR) HEAVY CAPACITY LOAD CELL

About the product

Ring-shaped high-capacity load cells - Primary transducer on tensile testing machine, - Prestressing bar measurement (concrete, snow, earth pressure, rocks, ...), - Industrial force measurement in confined spaces

Key features

- Low profile for high capacity load cells
- Material : Stainless steel (5190) or nickel plated steel (5195)
- Protection IP 65
- Sturdy design
- Most important available options:
o Custom made dimensions
o High service temperature (up to 180 °C)
o ATEX intrinsic safety Ex II 1GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80°C Da
o redundant dual Wheatstone bridge
o amplified output (V or mA) and digital output signal (RS-232C, RS-485, USB

The SENSY's load cells 5190-5195 are perfectly designed for the following applications

Pre-stressed rods measurement (concrete, snow, grounds, rocks....)
- Industrial force applications where space is limited

CAPACITIES
5190 - 5195 : 200 - 300 - 500 kN - (0.75) - 1 - 1.5 - 2 - 3 - 5 MN
5195 : 10 - 15 - 20 - 30 MN
