3300 Insertable strain gauge -INSERTGAGE®

About the product

Retractable flexure strain gauge designed to measure the tensile force in a structure by measuring its deformation.

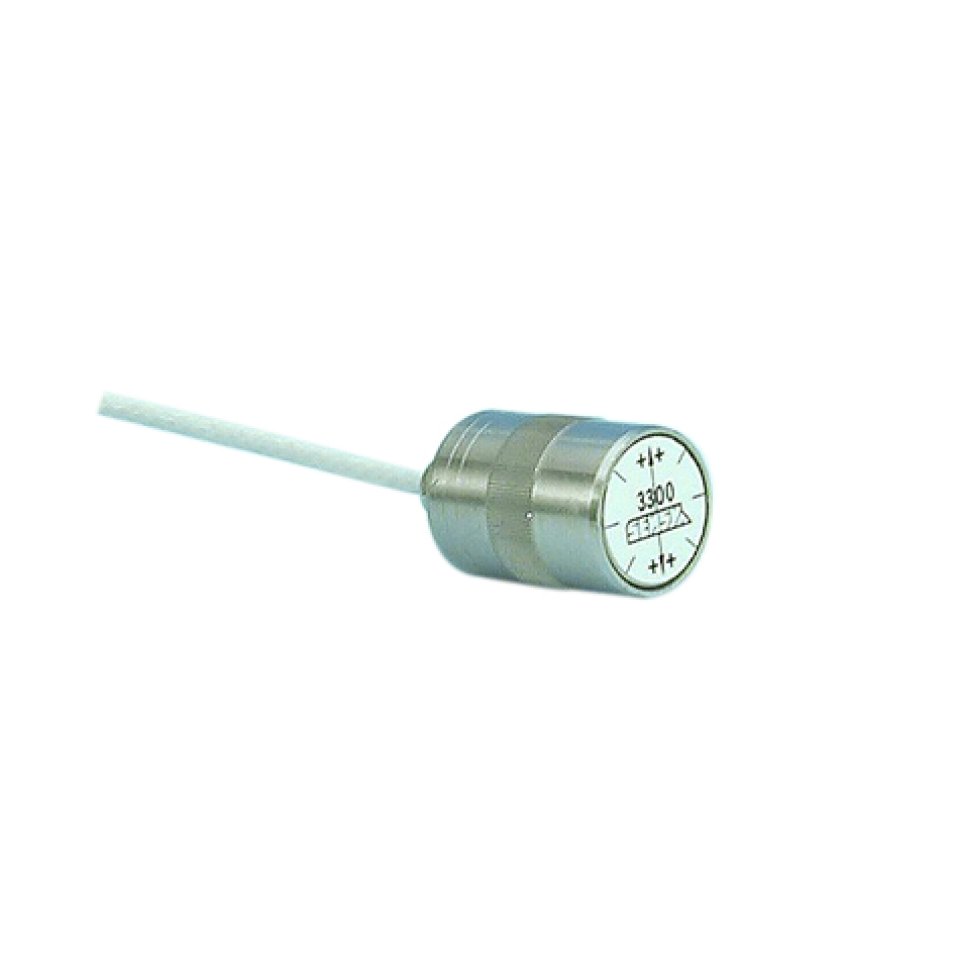

3300 INSERTABLE STRAIN SENSOR -INSERTGAGE®

Insertable extensometer designed to deduce the force in a structure by measuring its deformation

Key features

-Designed to measure:
o tension, compression shear and bending force
o torque, moment
- One unique model independent of the capacity range
- Stainless steel
- Protection IP 67
- Very competitive prices
- Easy to install (one hole to drill)
- Accuracy in the structure: 2 to 5%
- Options:
o ATEX intrinsic safety Ex II 1GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80°C Da

The SENSY's load cells 3300 are perfectly designed for the following applications

- Silos, hoppers, tanks, reactors or containers weighing - Level measurement - Stress measurement on machines - Force distribution control - Rail weighing - Set point detection

CAPACITIES
3300 : 40 to 120 N/mm²
