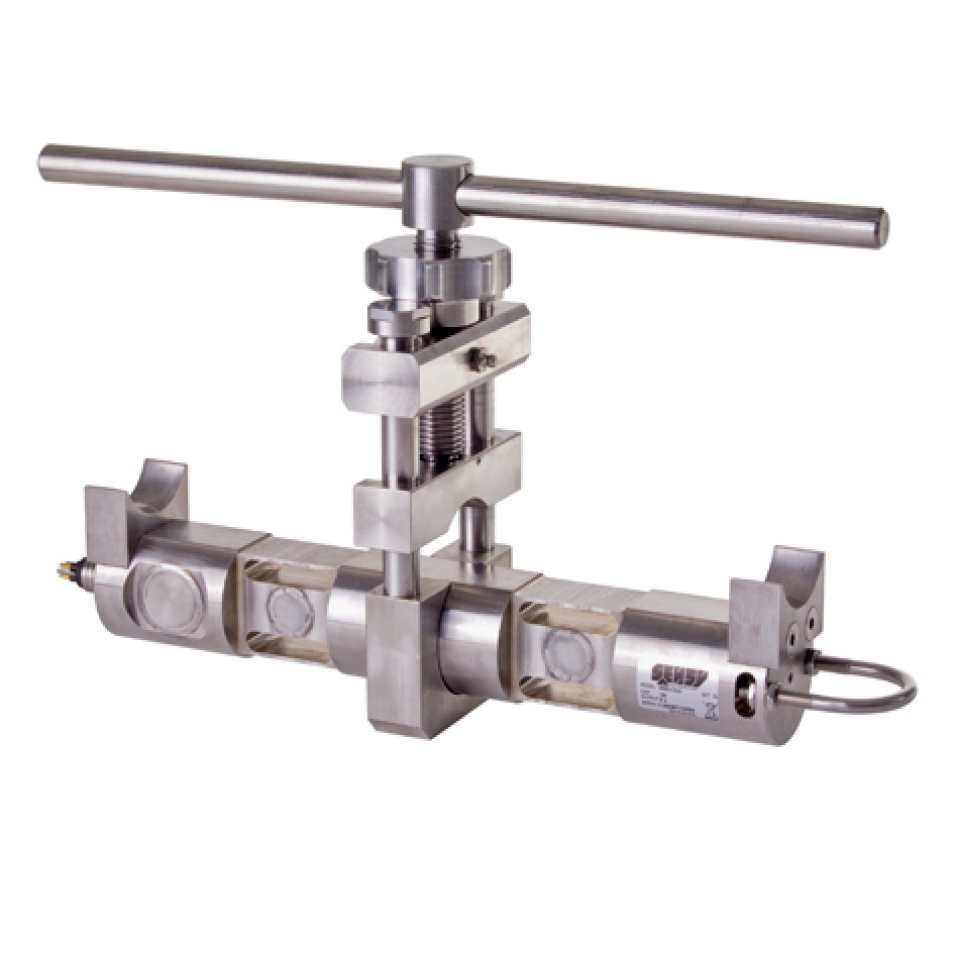

5560S STATIC LINE TENSIOMETER

About the product

Load cell specifically designed for measuring static tensile forces in cable, rope or wire, From 3-90mm up to 80 tons. Sealing degree up to IP68. Triple certification available, ATEX, CSA IECEX

Key features

- Easy and fast mounting
- Designed for static rope tension measurement
- Protection: IP67
- Wide range of cable's diameters : from 3 up to 90 mm (0.11 to 3.5") (to be defined)
- Stainless steel
- Available options (non-exhaustive list) :
o ATEX intrinsic safety Ex II 1GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80°C Da
o amplified output (V or mA) and digital output signal (RS-232C, RS-485, USB)
o subsea version (IP 68)

The SENSY's load cells 5560S are perfectly designed for the following applications

- Hookload sensor for drilling, mud-logging, ... - Tension measurement of cable, rope, shrouds and riggings of electric pylons, transmission antenna's, towers, flare masts, barge mooring lines, ... - Tension measurement for suspended bridges and foot-bridges, big tops, ...

CAPACITIES
5560S: 1 to 80 hours
on cable
