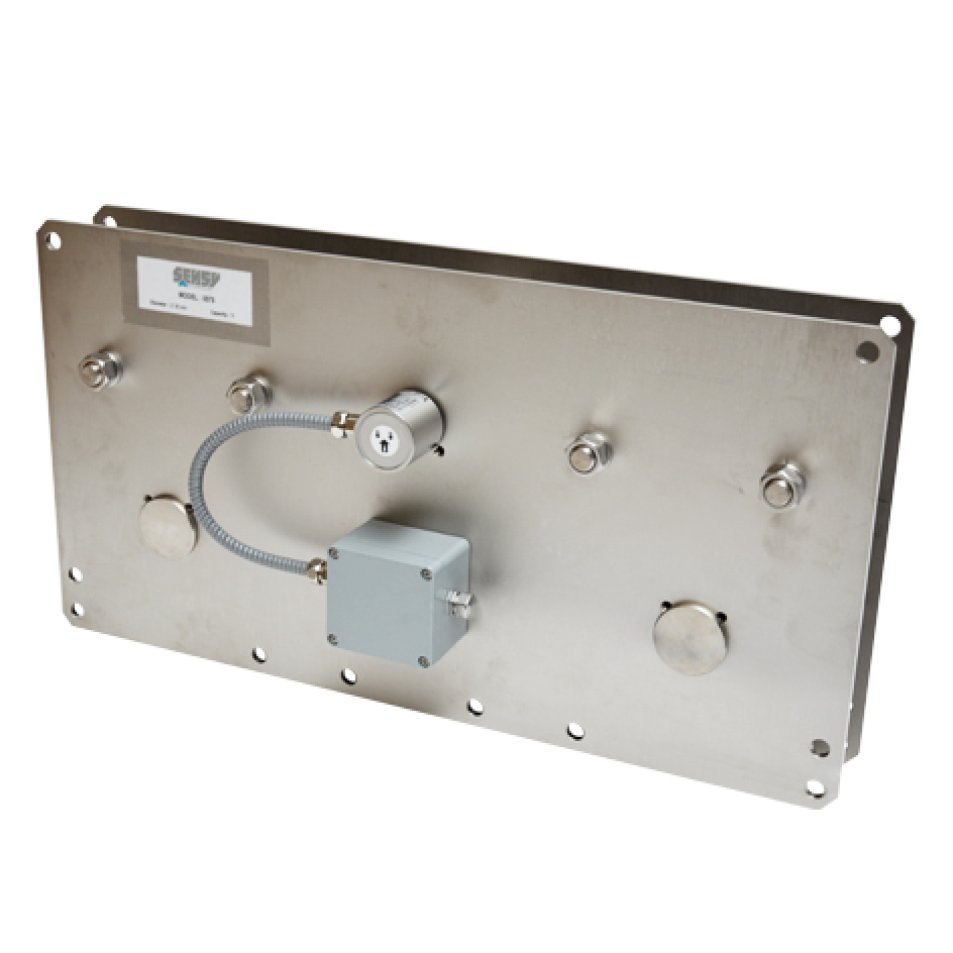

5570-5575 RUNNING LINE TENSION METER

About the product

Load cells specially designed for measuring tensile forces in running cable or rope. Up to Ø115 and 600t

Key features

- Custom made design according to your need:
o type of rope (steel, synthetic, optical fiber, umbilical)
o capacity
o rope diameter (Ø from 6 up to 115 mm)
o maximum winding speed
o accuracy
- Protection: IP65
- Material:
o load pin: stainless steel
o other : nickel plated steel or stainless steel (option)
- Available options (non-exhaustive list) :
o ATEX intrinsic safety Ex II 1GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80°C Da
o amplified output (V or mA) and digital output signal (RS-485)
o protection IP68 or special for marine environment

The SENSY's load cells 5570-5575 are perfectly designed for the following applications

- Mooring control in Oil and gas and marine equipment's
- ROV umbilical tension control
- Single rope cranes load limitation
- Tension measurement of towage and haulage cable
- Force measurement of winches

CAPACITIES
5570 - 5575 : from 0.4 to 600 t
