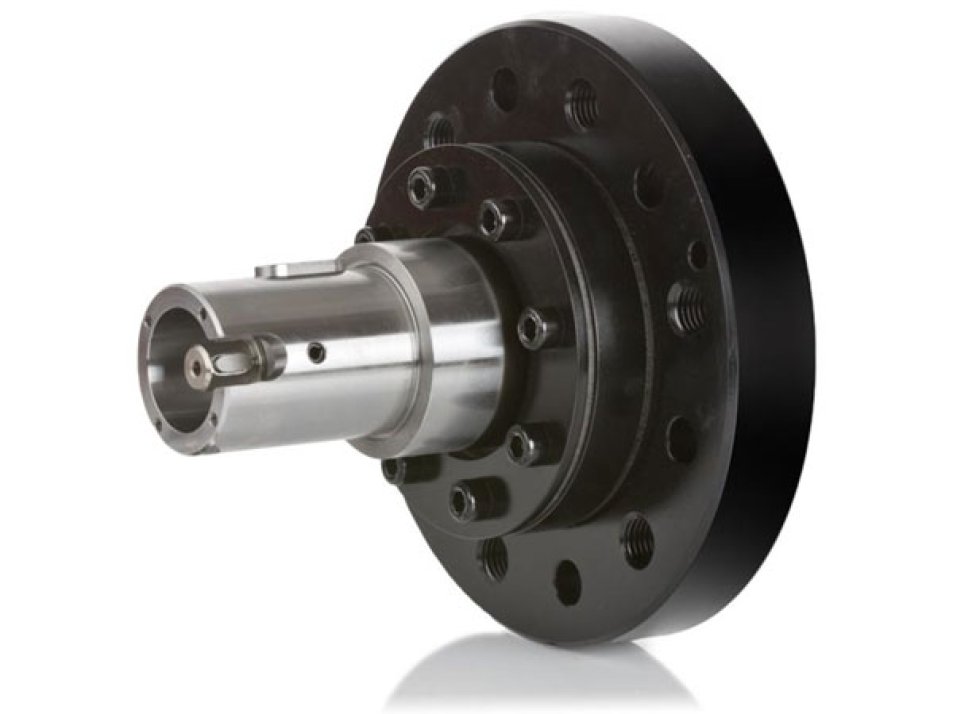

Flange adapter shafts, for hollow shaft encoders

About the product

Mounting of hollow shaft rotary encoders on shafts without centering threads Ideal for retrofitting and replacement, easy adjustment of the adapter shaft Options: insulated version, certified safety component according to DIN EN ISO 13849-2 (PL e)

• Mounting of hollow shaft encoders on large diameter shafts: External centering of customer shaft (flange adapter shaft with internal centering) Internal centering of customer shaft (flange adapter shaft with external centering) Possible for all encoder mounting positions (e.g. shaft up/down)
• Mounting type After inspection/agreement: External centering of customer shaft: Centering diameter approx. Ø 28–350 mm (encoder series 4/40/41) Internal centering of customer shaft: Centering diameter approx. Ø 30–290 mm (encoder series 4/40/41) External/internal centering of customer shaft: Centering diameter approx. Ø 50–200 mm (encoder series 5/6/60) Special design of customer shaft possible up to centering diameter Ø 500 mm or according to customer preferences
• Maximum speed/frequency Calculated individually from case to case/design according to consultation
• Shock resistance Calculated individually from case to case/design according to consultation
• Vibration resistance Calculated individually from case to case/design according to consultation
• Temperature range Calculated individually from case to case/design according to consultation Insulation against bearing/shaft currents Yes (optional)
• Certificates/approvals Optional: Designed as a fail-safe safety component according to DIN EN ISO 13849-2 (up to PL e), with CE declaration of conformity
