Intermediate flange encoder assembly

About the product

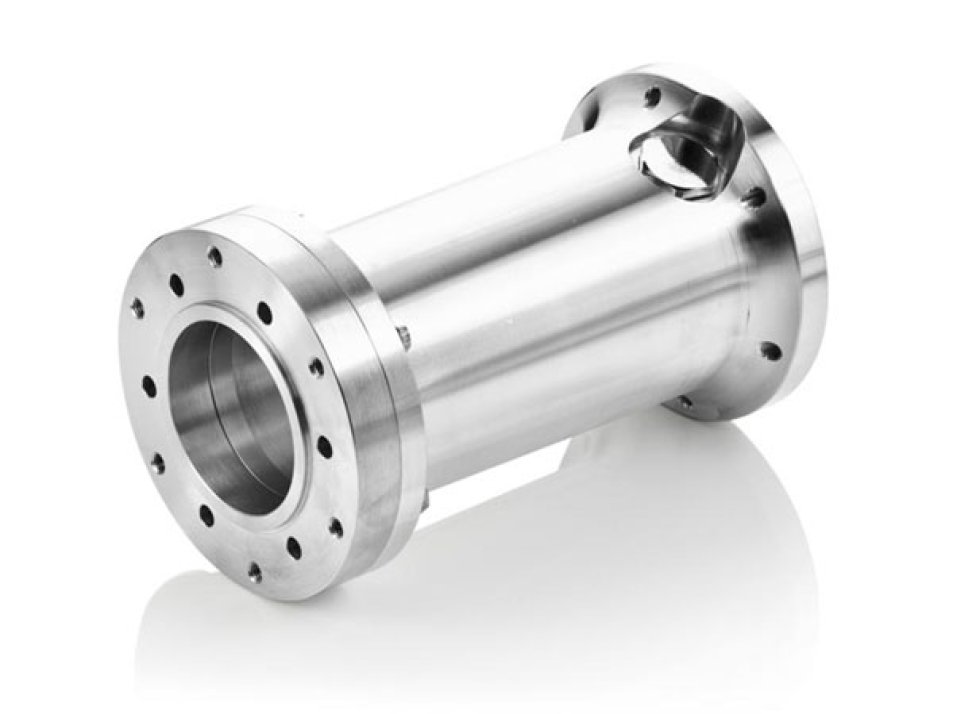

Customized intermediate flanges for encoders with shaft to machine housing Customized design (flange length / mechanical interface) corrosion-resistant aluminum housing Option: as safety component for encoders with functional safety (PL e)

Application Intermediate flange with spacer ring for B5 mounting of an encoder with shaft

Mounting type max. length 250 mm; spacer ring: Hole circle Ø ≥ 85 mm; centering Ø ≥ 65 mm
Maximum speed / frequency Calculated individually from case to case / design according to consultation
Shock resistance up to 100 g short-term; 54 g permanent for transducer weight 4.2 kg
Values for larger sensor weights on request
Vibration resistance up to 20 g short-term; 17 g permanent for transducer weight 4.2 kg
Values for larger sensor weights on request
Temperature range -25 °C to +85 °C
Insulation against bearing/shaft currents No
Certificates / Approvals Optional: Designed as a fail-safe safety component according to DIN EN ISO 13849-2 (up to PLe), with CE declaration of conformity
