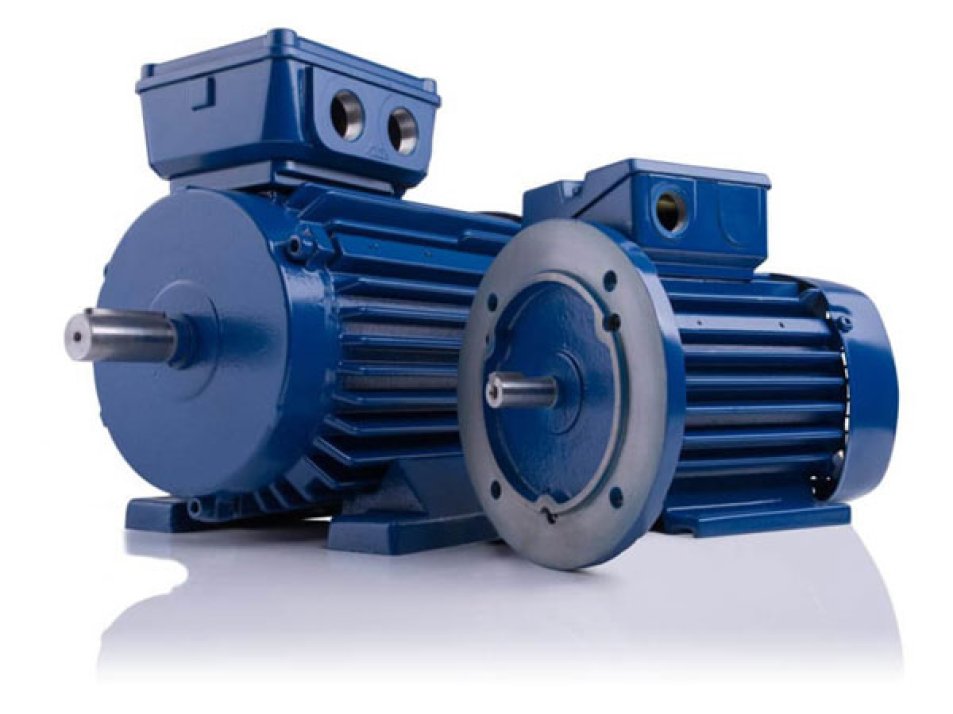

DSG-P Powerful three-phase synchronous generators

About the product

Three-phase synchronous generators with permanent "excitation (DSG P)" are specially designed for applications that seek to convert rotational motion into electrical energy over a wide range with as little loss as possible.

Robust, permanent magnet three-phase synchronous generator
High efficiency, energy availability and power density
High flexibility: individual calculation and design No wearing parts, high power density, low weight Degree of protection: IP55
Options: DC voltage output (rectifier in the junction box), special voltages

IECEx certification available

• Performance up to 100 kW
• Speed up to 4000 rpm (higher speed on request)
• Torque up to 500 Nm Voltage (DC) up to 500 VAC (phase-phase)
• Current (DC) up to 200 A AC per phase
• Electrical connection Terminal box / cable
• Protection degree IP55 (higher protection degree on request)
• Device Options / Function: DC voltage output (rectifier installed in junction box)
• Customized voltages
• Mechanical options Other shaft end
• Custom designs/dimensions
