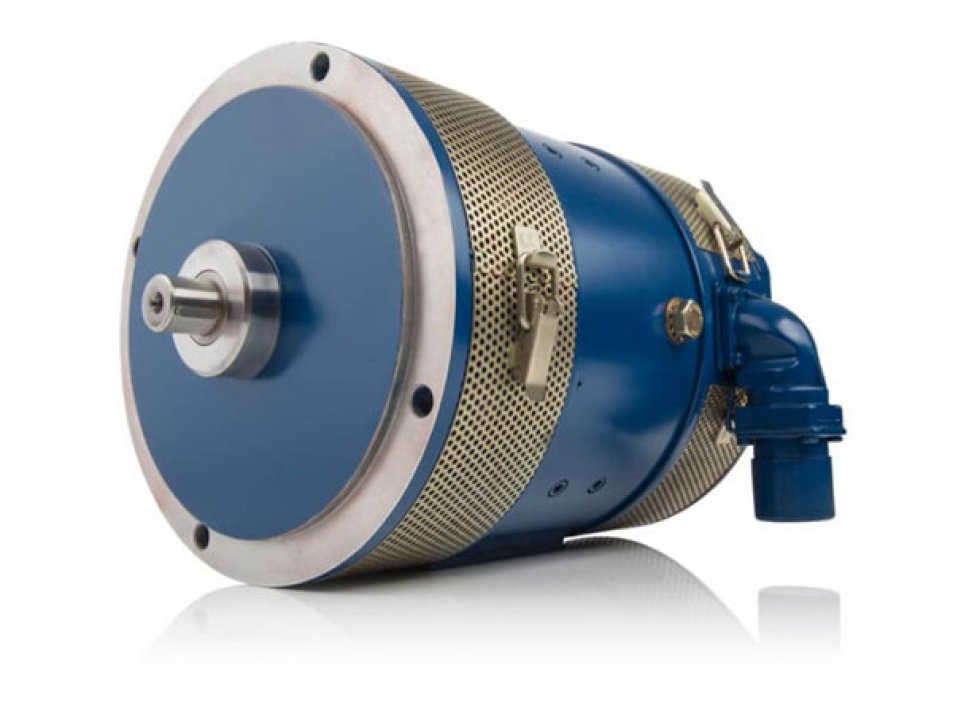

GN powerful DC motor for robust applications
Robust DC motor for direct power supply from battery
Secondary, series and compound winding versions
Direct connection to the battery possible without an inverter Individual / special designs and adjustments possible
Options: Mounting of additional devices, customized mounting solutions (e.g. spring-loaded brake)
Performance up to 30 kW
Speed up to 4500 rpm
Torque up to 83 Nm
Voltage (DC)12 / 24 / 48 VDC (or more)
Current (DC) up to 500 A DC
Electrical connection -TERMINAL BOX /cable/customer-specified connector
See datasheet for options
Typical applications
-
Energy
-
Crane & lifting
-
Winch
Manufacturer
Robust DC motor for direct power supply from battery
Secondary, series and compound winding versions
Direct connection to the battery possible without an inverter Individual / special designs and adjustments possible
Options: Mounting of additional devices, customized mounting solutions (e.g. spring-loaded brake)
Performance up to 30 kW
Speed up to 4500 rpm
Torque up to 83 Nm
Voltage (DC)12 / 24 / 48 VDC (or more)
Current (DC) up to 500 A DC
Electrical connection -TERMINAL BOX /cable/customer-specified connector
See datasheet for options
