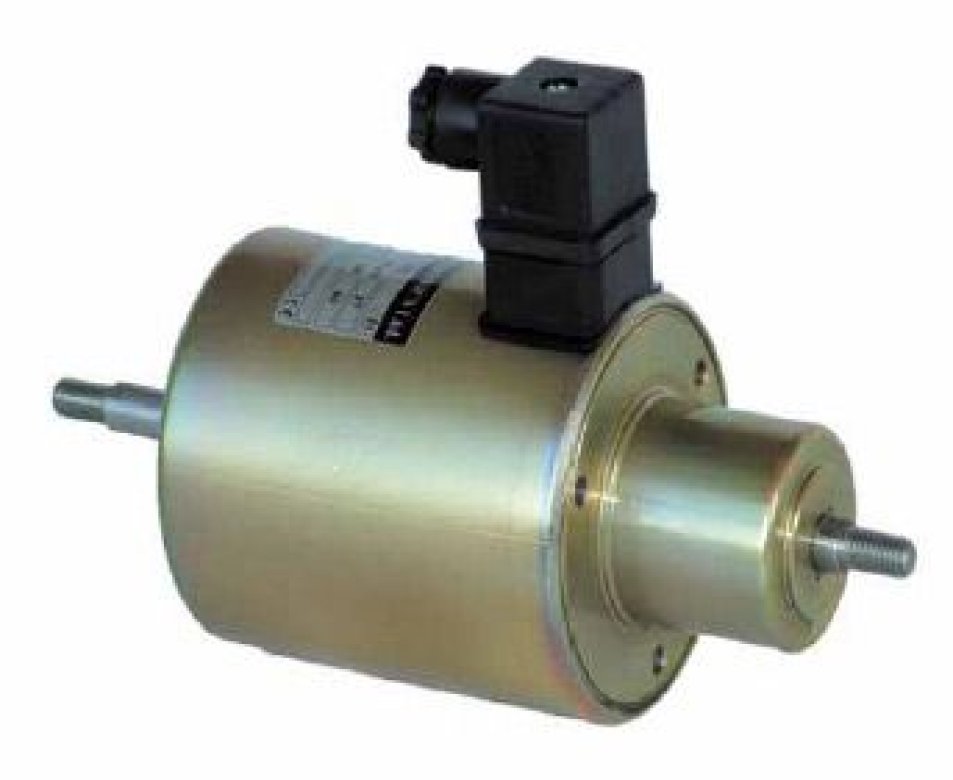

GT49111 Tubular Solenoid (Model CS100)
About the product
Model GT34102 tubular solenoid has a 30mm stroke and can provide 50N force at 100% ED.
The tubular solenoid is more magnetically efficient due to the coil being enclosed by a highly permeable steel tubular case to minimize magnetic flux leakage and maximize performance.
Key Features
- Pull or thrust types available
- AC option available
- Feet and bellows available
- Bearing mounted
- Ø100mm x 111mm
- 100% power 53 Watts dc
- 50N force at 30mm stroke
About the product
Model GT34102 tubular solenoid has a 30mm stroke and can provide 50N force at 100% ED.
The tubular solenoid is more magnetically efficient due to the coil being enclosed by a highly permeable steel tubular case to minimize magnetic flux leakage and maximize performance.
Key Features
- Pull or thrust types available
- AC option available
- Feet and bellows available
- Bearing mounted
- Ø100mm x 111mm
- 100% power 53 Watts dc
- 50N force at 30mm stroke
