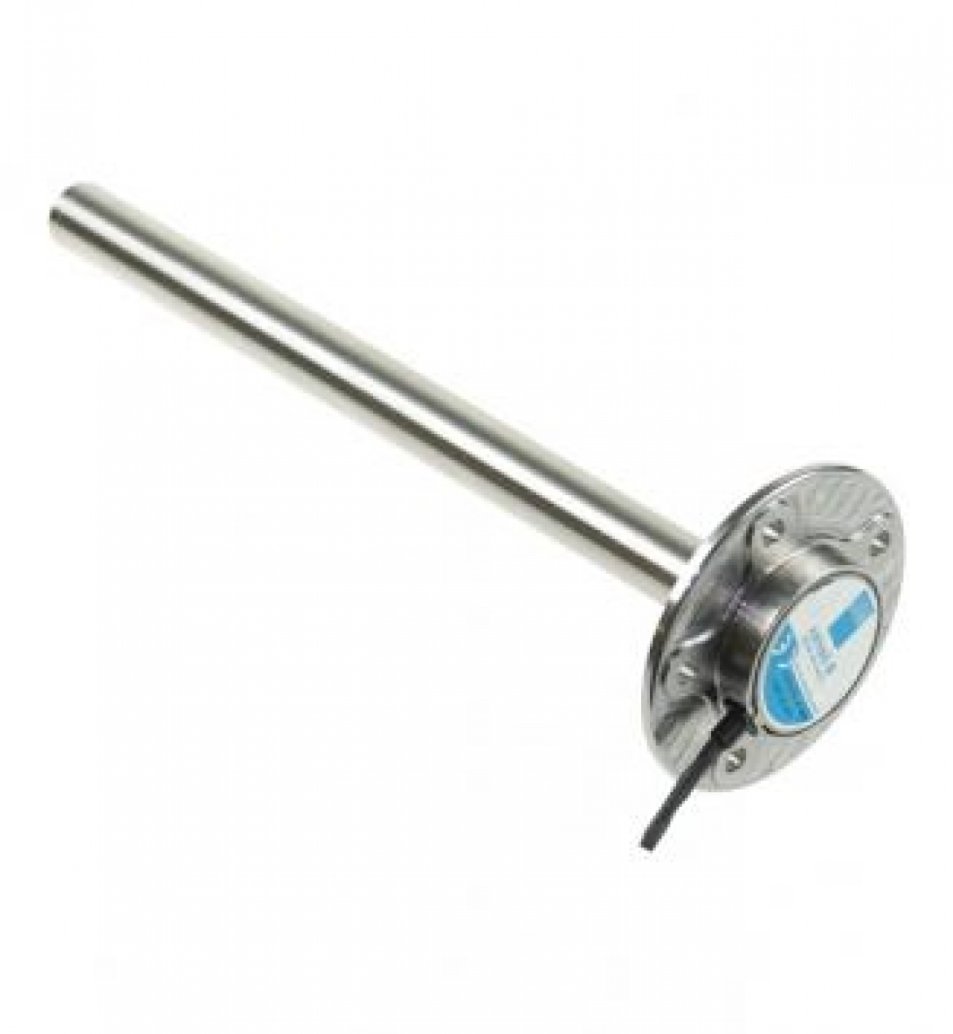

1612 Stainless steel level sensor
About the product
For inductive liquid level measurement in corrosive environments such as salt water, coolants, acids and chemicals.
Designed specifically for aggressive or corrosive liquids including salt water, coolant, acids and chemical-based liquids, the 1612 stainless steel sensor features an SAE 5-bolt mounting pattern. Utilizing capacitive technology, with fully integrated electronics provides a configurable 0-5V analogue output over the calibrated sensing range. Each sensor is factory calibrated in the specified liquid type. The sensor is available in lengths from 80mm up to 1500mm long and manufactured to custom length requirements.
Output:Voltage 0.25- 4.75V DC
Resolution : 10 bit Supply Voltage: +6 to +24V DC
Supply Current: Less than 10mA @ 12V
Ingress Protection: IP67
Mounting: SAE 5-bolt flange
Length: 80 to 1500mm
Typical applications
-
Process
-
Hydraulics & Mechatronics
-
Aquaculture
-
Condition monitoring
-
Machine & Propulsion
-
Off Highway Automotive
Manufacturer
About the product
For inductive liquid level measurement in corrosive environments such as salt water, coolants, acids and chemicals.
Designed specifically for aggressive or corrosive liquids including salt water, coolant, acids and chemical-based liquids, the 1612 stainless steel sensor features an SAE 5-bolt mounting pattern. Utilizing capacitive technology, with fully integrated electronics provides a configurable 0-5V analogue output over the calibrated sensing range. Each sensor is factory calibrated in the specified liquid type. The sensor is available in lengths from 80mm up to 1500mm long and manufactured to custom length requirements.
Output:Voltage 0.25- 4.75V DC
Resolution : 10 bit Supply Voltage: +6 to +24V DC
Supply Current: Less than 10mA @ 12V
Ingress Protection: IP67
Mounting: SAE 5-bolt flange
Length: 80 to 1500mm
