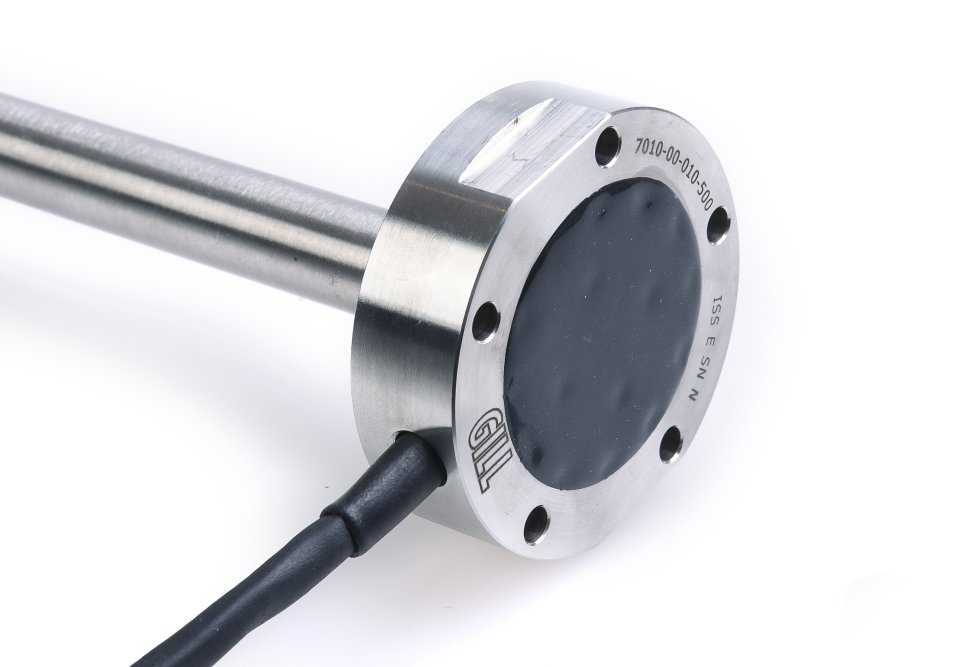

LevelPro Robust reliable liquid level sensor
About the product
Stainless steel sensors for accurate liquid level monitoring in fuels, oils, chemicals, salt and fresh water.
LevelPro is the ultimate in accurate and reliable liquid level measurement in challenging environments. Constructed from high-quality 316 stainless steel with sealed electronics, the sensor excels in harsh conditions where either the liquid or environment is corrosive, or the liquid is subject to constant movement. In these demanding situations, LevelPro delivers stable and reliable readings.
The sensor uses solid-state capacitive technology to sense liquid level. With no moving parts, floats or other mechanical linkages, LevelPro provides excellent long-term reliability, accuracy and durability resulting in low lifetime cost.
To facilitate installation and setup, the sensor comes with the Gill tank profiling system that optimizes sensor measurement regardless of the shape of the tank. Available in lengths of up to 2 meters, LevelPro is suitable for monitoring a wide range of liquid types, including aggressive or corrosive liquids, fuels, oils, chemicals, coolants and water-based liquids.
LevelPro comes with analog voltage or current output to suit a variety of applications.
Each sensor is factory calibrated with temperature compensation to provide market-leading accuracy in liquid level measurement.
KEY FEATURES
- Robust stainless steel construction
- No moving parts for long-term reliability
- Selectable high/low alarm
- Tank profiling system for irregularly shaped tanks
- 5 Bolts SAE or BSP, UNF or NPT thread mounting options
- Top of tank or reverse installation possible
- Factory calibrated for quick and easy setup
- Wide operating temperature range, -40°C to +125°C
- Compatible with water, salt water, fuel, oils and chemicals
For updated software, download from the manufacturer's website.
Typical applications
-
Process
-
Hydraulics & Mechatronics
-
Condition monitoring
-
Machine & Propulsion
-
Off Highway Automotive
Manufacturer
About the product
Stainless steel sensors for accurate liquid level monitoring in fuels, oils, chemicals, salt and fresh water.
LevelPro is the ultimate in accurate and reliable liquid level measurement in challenging environments. Constructed from high-quality 316 stainless steel with sealed electronics, the sensor excels in harsh conditions where either the liquid or environment is corrosive, or the liquid is subject to constant movement. In these demanding situations, LevelPro delivers stable and reliable readings.
The sensor uses solid-state capacitive technology to sense liquid level. With no moving parts, floats or other mechanical linkages, LevelPro provides excellent long-term reliability, accuracy and durability resulting in low lifetime cost.
To facilitate installation and setup, the sensor comes with the Gill tank profiling system that optimizes sensor measurement regardless of the shape of the tank. Available in lengths of up to 2 meters, LevelPro is suitable for monitoring a wide range of liquid types, including aggressive or corrosive liquids, fuels, oils, chemicals, coolants and water-based liquids.
LevelPro comes with analog voltage or current output to suit a variety of applications.
Each sensor is factory calibrated with temperature compensation to provide market-leading accuracy in liquid level measurement.
KEY FEATURES
- Robust stainless steel construction
- No moving parts for long-term reliability
- Selectable high/low alarm
- Tank profiling system for irregularly shaped tanks
- 5 Bolts SAE or BSP, UNF or NPT thread mounting options
- Top of tank or reverse installation possible
- Factory calibrated for quick and easy setup
- Wide operating temperature range, -40°C to +125°C
- Compatible with water, salt water, fuel, oils and chemicals
For updated software, download from the manufacturer's website.
