117 Series Slim-Line Linear Position Sensor
About the product

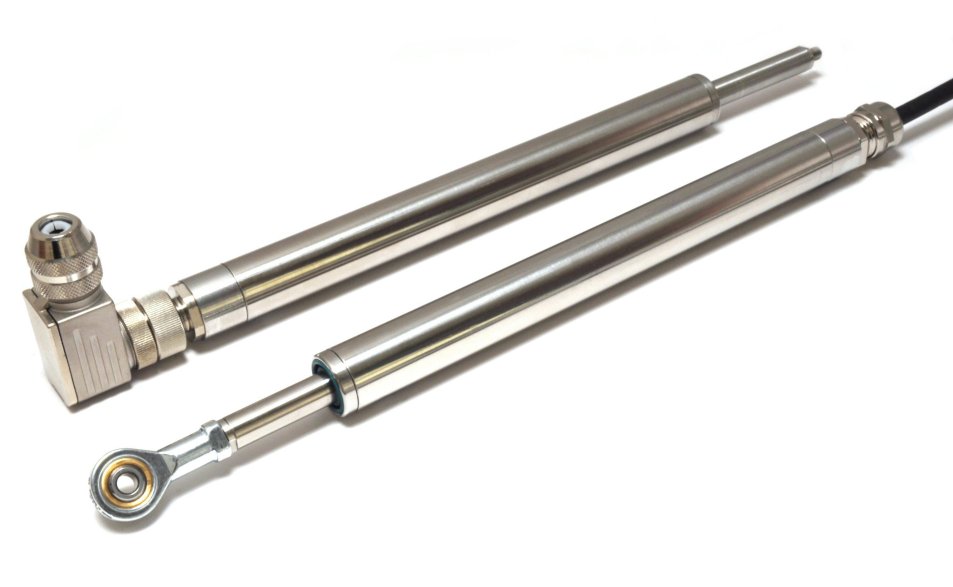

The P117 is very space efficient and compact with its 19mm diameter. Affordable, durable, high accuracy position sensor designed for industrial and scientific applications. The repeatability, overall performance and stability are excellent over a wide temperature range. The P117 is housed in a stainless steel tube and has a 3/8" stainless steel push rod. ATEX, IECEX, CSA certified available.
Various mounting options are available including M5 male stud and M5 rod eye bearing. The push rod can be supplied free or captive with M5 male thread or M5 rod eye. Like all Positek products the P117 provides a linear output proportional to the displacement. Each unit is supplied calibrated to the customers exact requirement, from 0-5mm to 0-350mm and with full EMC protection built in. For example, if your application requires 3/4" (19 mm) measurement then Positek will manufacture the sensor specifically for this length. The mechanical length and calibration will be set up for 19 mm.
The P117 is sealed to IP67. The sensor has fully integrated EMC protection.
Typical applications
-
Process
-
Hydraulics & Mechatronics
-
Heavy industry
-
Drilling & Rig
Certificates and standards
-
Atex
-
IECEX
-
CSA
Manufacturer
About the product
The P117 is very space efficient and compact with its 19mm diameter. Affordable, durable, high accuracy position sensor designed for industrial and scientific applications. The repeatability, overall performance and stability are excellent over a wide temperature range. The P117 is housed in a stainless steel tube and has a 3/8" stainless steel push rod. ATEX, IECEX, CSA certified available.
Various mounting options are available including M5 male stud and M5 rod eye bearing. The push rod can be supplied free or captive with M5 male thread or M5 rod eye. Like all Positek products the P117 provides a linear output proportional to the displacement. Each unit is supplied calibrated to the customers exact requirement, from 0-5mm to 0-350mm and with full EMC protection built in. For example, if your application requires 3/4" (19 mm) measurement then Positek will manufacture the sensor specifically for this length. The mechanical length and calibration will be set up for 19 mm.
The P117 is sealed to IP67. The sensor has fully integrated EMC protection.
