ICT820 - Contactless "In cylinder" linear transducer CAN SAE J1939 output

About the product

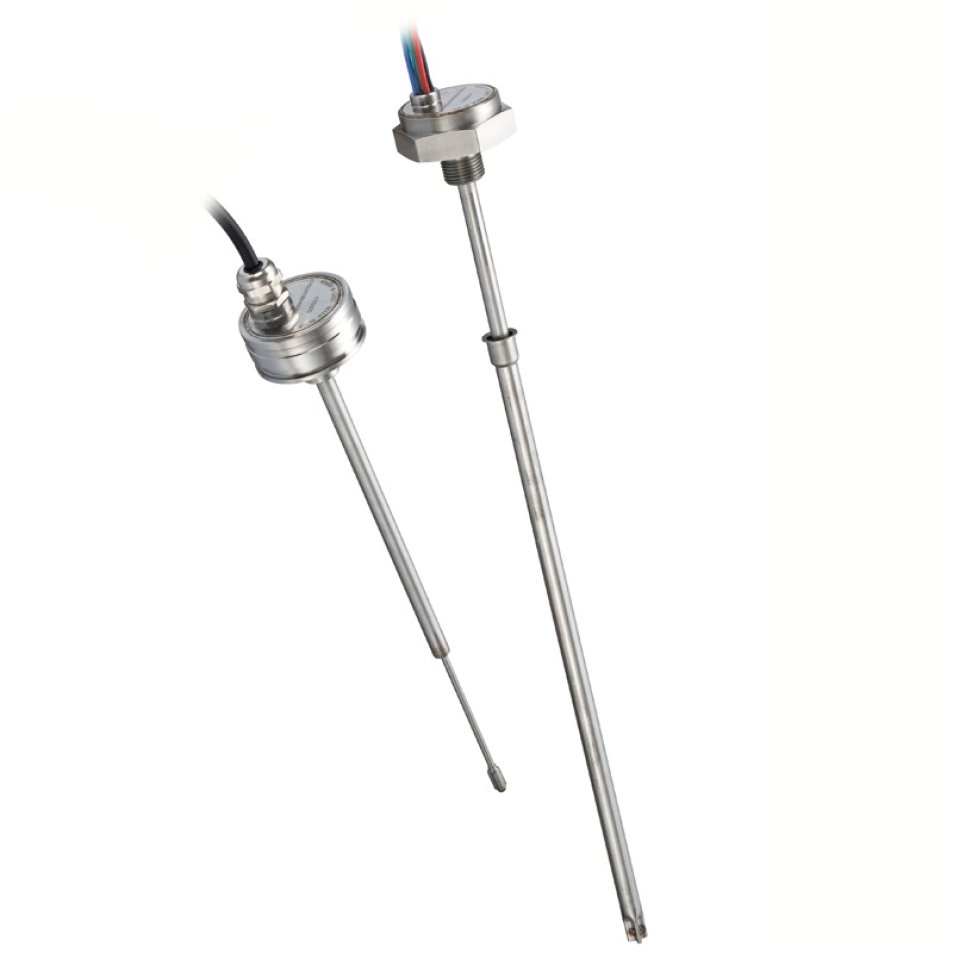

Contactless cylinder transducer that combines the best of LVDT and potentiometer in a robust and reliable displacement sensor. Diameter Ø8mm, lengths from 25-1000 mm, working pressure up to 670bar.

• Measuring range 25-1000mm
• Small transducer body length to stroke ratio
• Working pressure to 670 bar (10,000 psi)
• Temperature range -40 to +125°C
• Operates from 5Vdc or 8-30Vdc
• CAN SAE J1939 output
• Selectable Node ID, Baud and Frame Rate
• Flexible mounting styles
• Rugged stainless steel construction

Signal conditioning is integrated into the transducer flange.

Operating from 8 - 30Vdc or 5Vdc supply, the electronics provide a CAN SAE J1939 output over the selected transducer measurement range.

With a transducer body diameter of only 8mm the ICT820 is ideal for installation into hydraulic and pneumatic cylinder applications where space is at a premium. The ICT820 is ideal for use on small-bore actuators and offers a choice of internal or threaded external flange mounting configurations to suit tie-rod, welded and rear clevis-mounted cylinder types in stroke ranges from 25 to 1000mm. Two core configurations also provide the designer the following options:

• SLEEVED CORE - cylinder rods can be simply machined to accommodate the sleeve. This also gives the option of retro-fitting existing servo-cylinders with an upgrade to ICT technology.
• THREADED CORE - provides the designer with the minimum transducer body size and simplified installation requiring minimal machining.

With no electrical sliding contacts, the ICT820 has a working life which is almost limitless.
