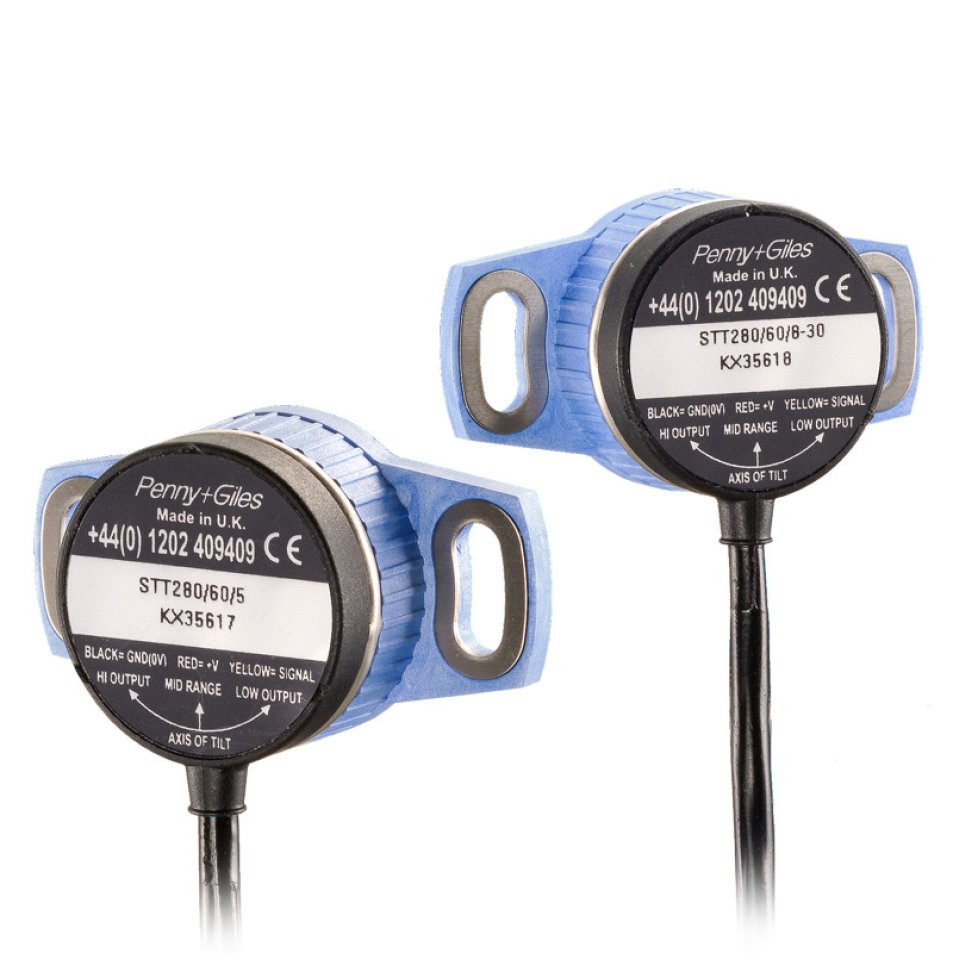

STT280 Tilt - tilt angle sensor

About the product

The STT280 is a sealed tilt sensor designed to provide reliable measurement of inclination angle, a "fit-and-forget" inclinometer, extremely compact housing, for the most demanding operating environments. Suitable for use in applications such as cranes, elevators, vehicles, container handling and ships and offshore vessels where accurate angle measurement is required.

The STT280 uses solid state 3D-MEMS (Micro-Electro-Mechanical Systems) technology to measure the sensor's inclination relative to the earth's gravity. The STT280 has a choice of measurement ranges from ±10°, ±20°, ±30° and ±60° and provides a 0.5 to 4.5Vdc output signal over this range, with a nominal 2.5Vdc at 0° tilt. By using this technology, the STT280 provides distinct advantages in reliability, stability and compactness over fluid based, electrolytic and pendulum operated sensors.

The STT280 can operate from a 5Vdc regulated or 8-30Vdc unregulated supply.

Key Features
• No moving parts
• High resolution ±0.07°
• Absolute measurement
• Measuring ranges ±10°, ±20°, ±30° and ±60°
• Less than 6.5mA supply current
• Crush-proof mounting flange
• Rugged construction, sealed to IP68
