Vibration-tolerant tilt sensor, pitch & roll

About the product

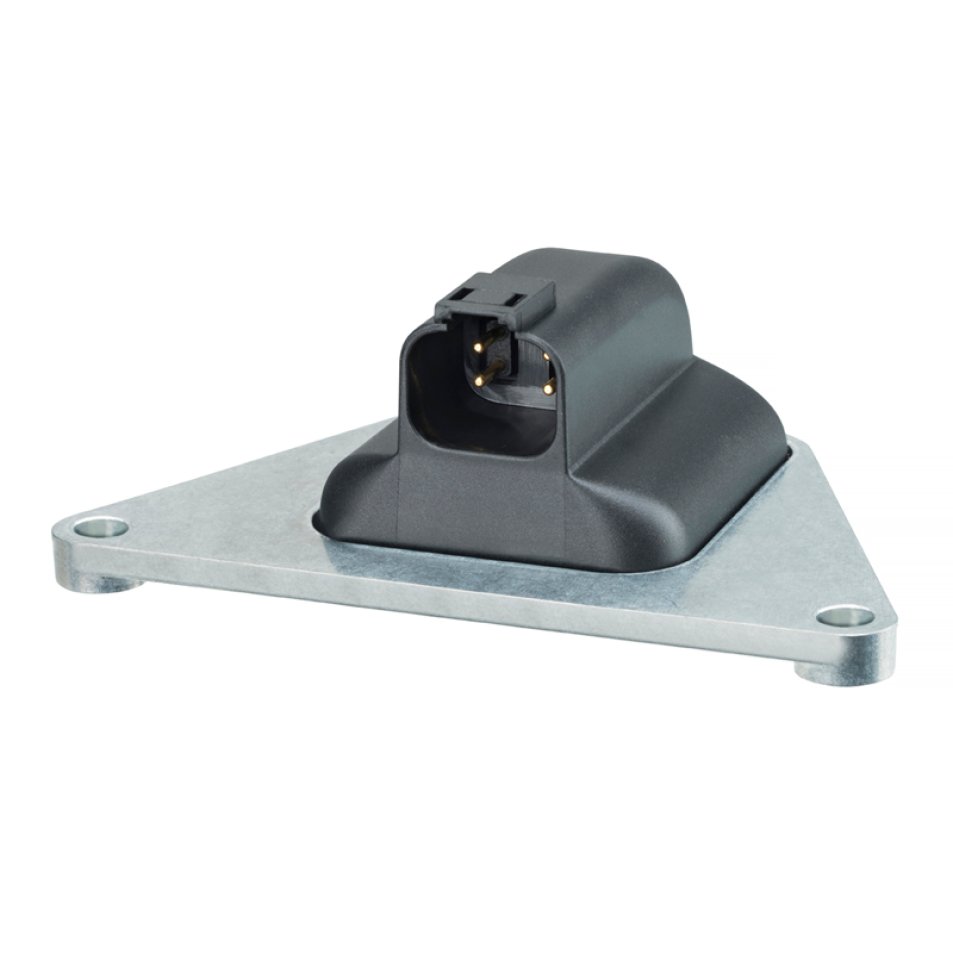

The VTS2021 is a dual-axis, vibration-tolerant tilt sensor. ptch and roll, which provides an optimal combination of performance, safety and cost in dynamic applications.

• Vibration-tolerant tilt sensor
• Thermal compensation
• Designed for dynamic applications
• Dual axis – pitch and roll
• Dual sensing per axis for error detection
• 12Vdc and 24Vdc supply
• CAn Open and J1939 CANbus output
• IP67 enclosure
• Integrated Deutsch DT04 connector

IMU technology and fast-acting software algorithms filter out disturbances caused by vibration and vehicle motion, to provide output stability without the measurement delays usually associated with heavily-damped, alternative sensing methods.

Each measurement axis has two sensing elements, which are constantly compared to ensure correct operation. If an error is detected, the condition is communicated to the host electronics; so allowing a safe situation to be assumed. Each output signal is calibrated to account for thermal drift, ensuring accuracy over the operating temperature range.

Powered from a voltage supply range of 6-48Vdc, the sensor provides output data over CANbus using J1939 protocol with a choice of baud and frame rates.

The sealed design offers exceptional levels of performance with respect to water, dust, shock, vibration and temperature, meaning the sensor is ideal for use in hostile, on- and off-highway vehicle environments. Electrical connection is via an integrated 4-pin Deutsch DT04 connector.
