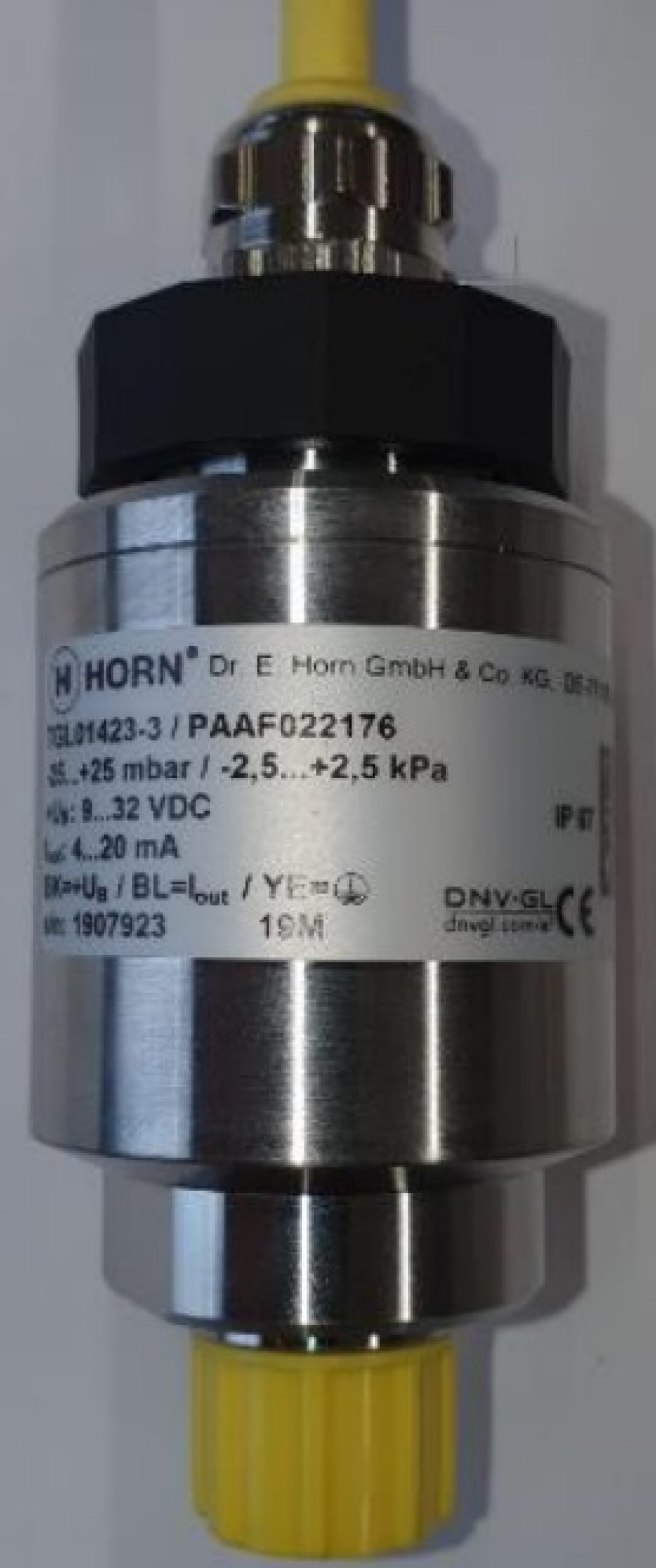

TGL014 ATEX Pressure transmitter 0...40 mbar to 0...250 bar

About the product

Pressure transmitter designed for absolute and gauge pressure for gas, steam and liquids. Many measuring ranges

TGL014xx series pressure transmitters are designed for measuring absolute and gauge pressure of gases, vapors and liquids.
Different pressure measuring ranges available:
+/-25mbar / 0...50mbar / 0...100mbar
Supply voltage: 18...32V DC
Current consumption: < 30mA
output current: 4-20mA, two-wire system
load resistance: >500Ohm
Reverse polarity protection: yes
Operating temperature: -25...80 °C
Protection class: IP 67 according to EN60529
Overpressure: -0.3 bar to +4 bar max.
Overall accuracy: 0.5% f.s.
