BRIDGE-BOY Load limitation with 1-3 "set points"

About the product

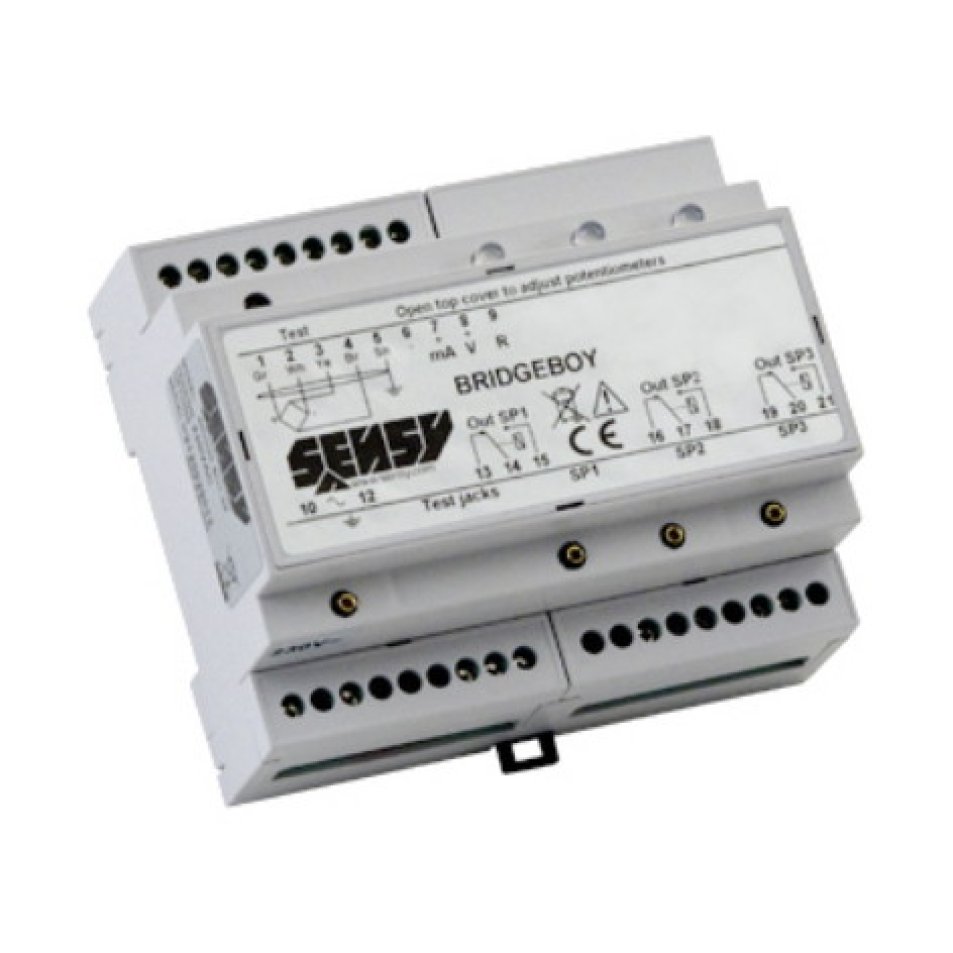

BRIGDE BOY laod limitation electronics with 1 or 3 setpoints

BRIDGE-BOY LOAD LIMITATION ELECTRONICS WITH 1 OR 3 SET POINTS

Electronics with 1 or 3 set points designed, in combination with a load cell, to limit the load and/or to detect slack cable of a hoisting device (EOT cranes).

Key features

o Low cost
o 1 or 3 independent set points
o Set point 1 and 2 configured for load limitation
o Set point 3 configured by default for slack cable detection
o Adjustments by potentiometers easy to reach
o Analog outputs: 0...10V and 4...20mA
o Your rail mounting
o 115 VAC available by internal jumper

' Applications
Load limitation on
- overhead cranes
- container cranes
- gantry cranes

Functions
- Internal monitoring system of the integrity of the load cell and the load limitation electronics (positive safety).
- Visualization of overloads by a led on the front.
- TEST button on the front
- Hysteresis
- Overload : default value : 20% (0% or 5% possible if specified at the order)
- Slack cable detection: 0%
