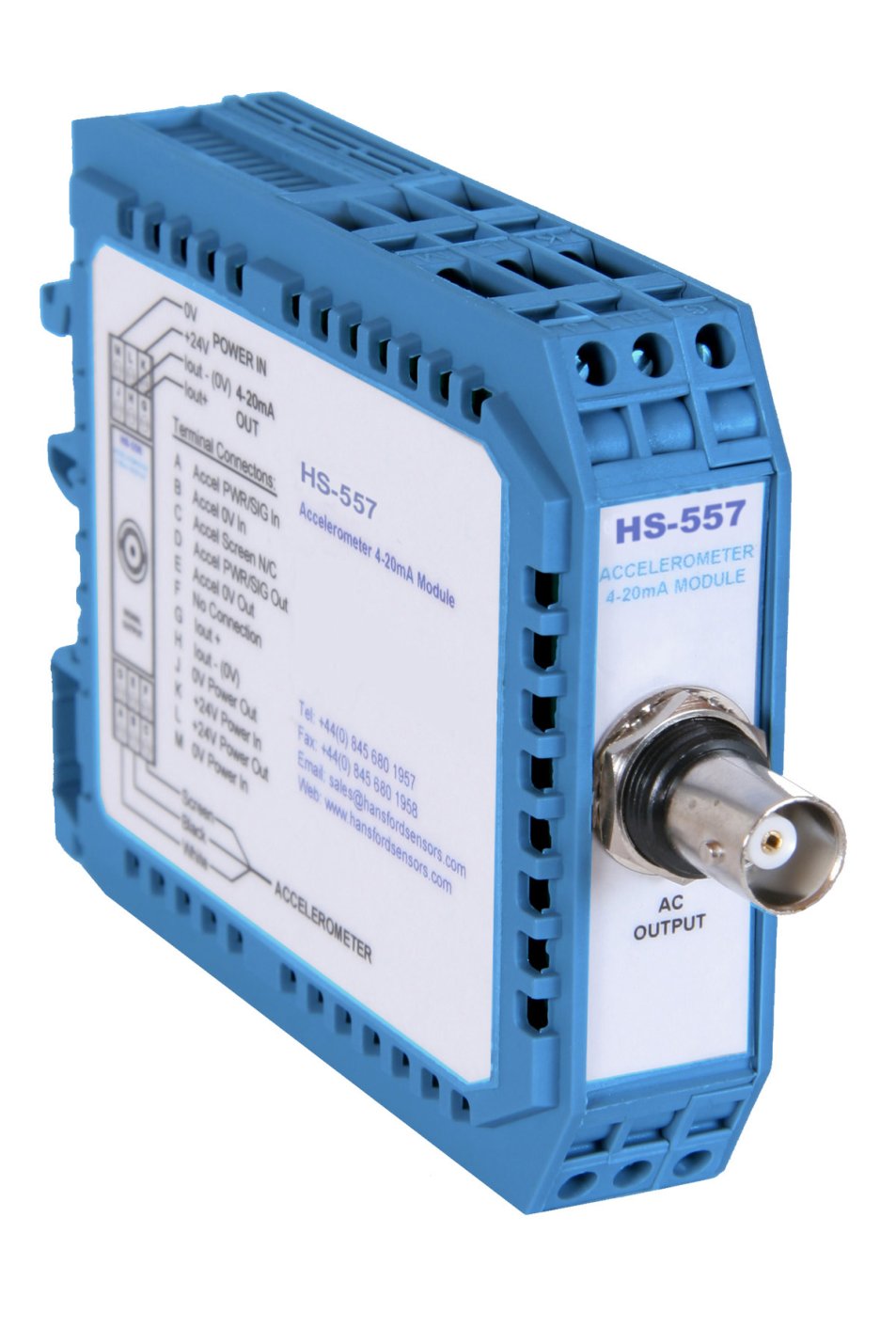

HS-557 Series Dual Output 4-20mA Interface Module
About the product
>Input 1 - Dual Output Accelerometer with Temperature Sensor (HS-100T Series), 10mV/°C, PT100 >Input 2 -100mV/g constant current accelerometers (HS-100 Series) >Output - 4-20mA proportional to temperature and velocity or 'g', AC 'g' via BNC or screw terminal (for data collector)
Features
- Industrial Accelerometer input
- 4-20 mA Velocity or 'g' output
- Low Pass Filter
- DIN Rail Mounting
- Buffered Accelerometer output (for Data Collection) via BNC and screw terminals
- Temperature Input 4-20mA
- Temperature Output
Certificates and standards
-
CE
Manufacturer
About the product
>Input 1 - Dual Output Accelerometer with Temperature Sensor (HS-100T Series), 10mV/°C, PT100 >Input 2 -100mV/g constant current accelerometers (HS-100 Series) >Output - 4-20mA proportional to temperature and velocity or 'g', AC 'g' via BNC or screw terminal (for data collector)
Features
- Industrial Accelerometer input
- 4-20 mA Velocity or 'g' output
- Low Pass Filter
- DIN Rail Mounting
- Buffered Accelerometer output (for Data Collection) via BNC and screw terminals
- Temperature Input 4-20mA
- Temperature Output
