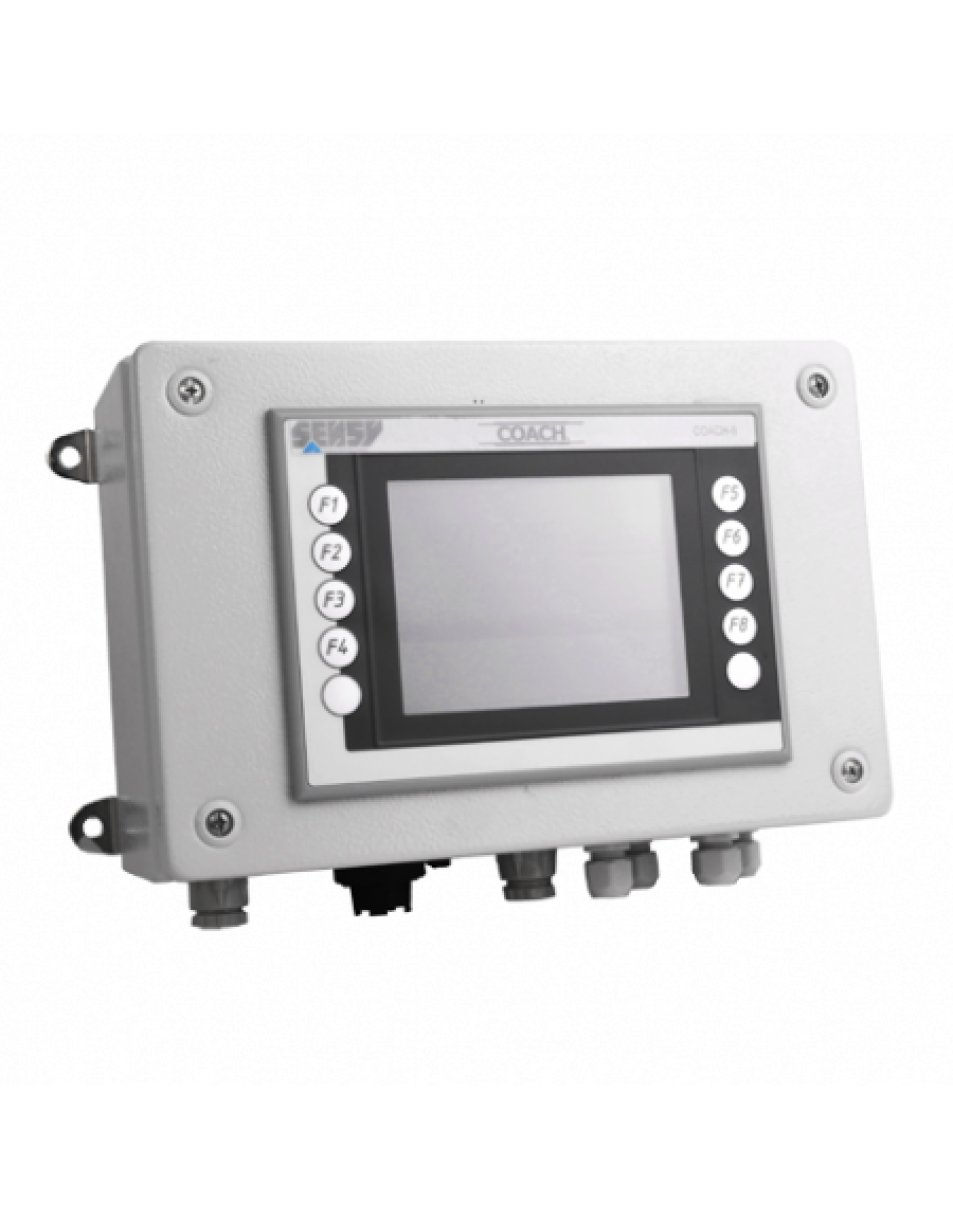

COACH-II Data recording & management for EOT cranes

About the product

COACH-II is a new generation of electronic data logging, monitoring and control system for overhead cranes (EOT); can be adapted to other types of crane. It is designed to optimize maintenance with full logging of mechanical stresses during use. It can be used as a "flight recorder" tracking the history of all recent movements.

Applications
The COACH-II of SENSY is perfectly designed to the following applications:
Survey and monitoring of overhead traveling cranes (EOT).

Functions
- Hourly recording on a duration of 25 years of :
o Upward (ascent), downward (descent), long travel (translational) and short travel (trolley direction)
o Number of inching
o Lifted load's spectrum and Overloads
- Recording of sequences of recent movements (6 months)
- SWP (Safe Working Period) calculation).
- Display on front color touch screen : (Lifted load, movements, SWP, alarms, temperatures, etc..)
- Alarm's detection and management (overloads, SWP, etc...) with activation of a relay
- Detection of wire break of the analog input
- Protection against overvoltage and reverse polarity at the analog input
- Coach-II Programming and data retrieval via the USB stick or via Ethernet (option)
- COACH-II is supplied with the COACH-VIEW (configuration and analysis data by visualizing by means of graphs and tables)
