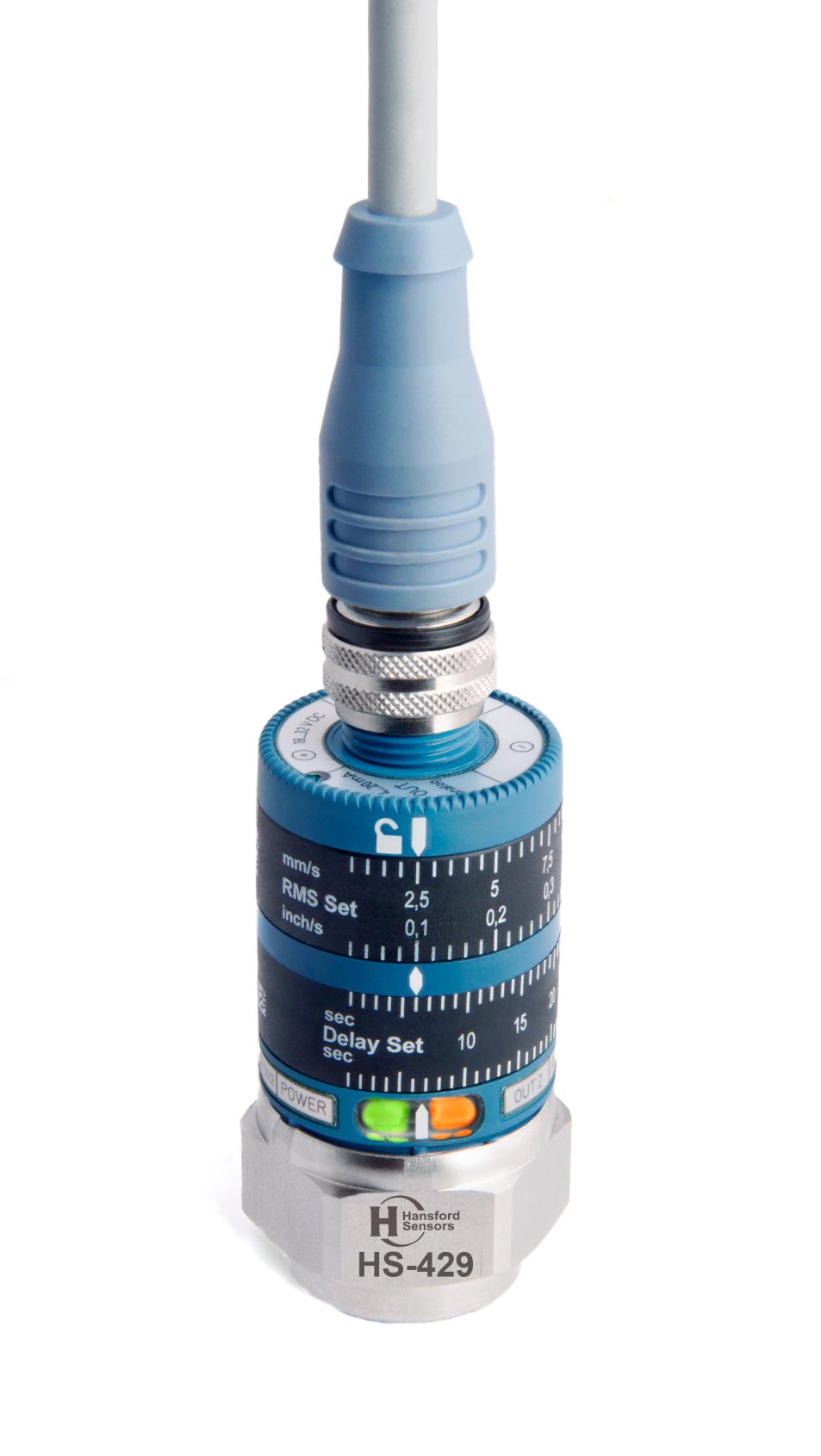

HS-429 Vibration switch
About the product
The vibration sensor detects the vibration in the system (measured / evaluated physical unit = vibration speed). This is converted into an analog 4-20mA signal. The desired switch signal is set using two scaled rings on the sensor.
The HS-429 is one of the most compact vibration switches on the market, enabling the continuous monitoring and protection of assets in tight spaces. It is designed to transmit a 4-20mA signal, features an adjustable false trigger delay of up to one minute to prevent error trips, which may occur at machine start up, and is overload protected to a maximum shock of 100g and can be used in a range of industries including mining, automotive, building services and pharmaceutical.
Compact vibration switch
Retransmit 4-20mA signal
False trigger delay
Overload protected
Typical applications
-
Condition monitoring
-
Machine & Propulsion
-
Off Highway Automotive
-
Process
-
Energy
-
Hydraulics & Mechatronics
Manufacturer
About the product
The vibration sensor detects the vibration in the system (measured / evaluated physical unit = vibration speed). This is converted into an analog 4-20mA signal. The desired switch signal is set using two scaled rings on the sensor.
The HS-429 is one of the most compact vibration switches on the market, enabling the continuous monitoring and protection of assets in tight spaces. It is designed to transmit a 4-20mA signal, features an adjustable false trigger delay of up to one minute to prevent error trips, which may occur at machine start up, and is overload protected to a maximum shock of 100g and can be used in a range of industries including mining, automotive, building services and pharmaceutical.
Compact vibration switch
Retransmit 4-20mA signal
False trigger delay
Overload protected
