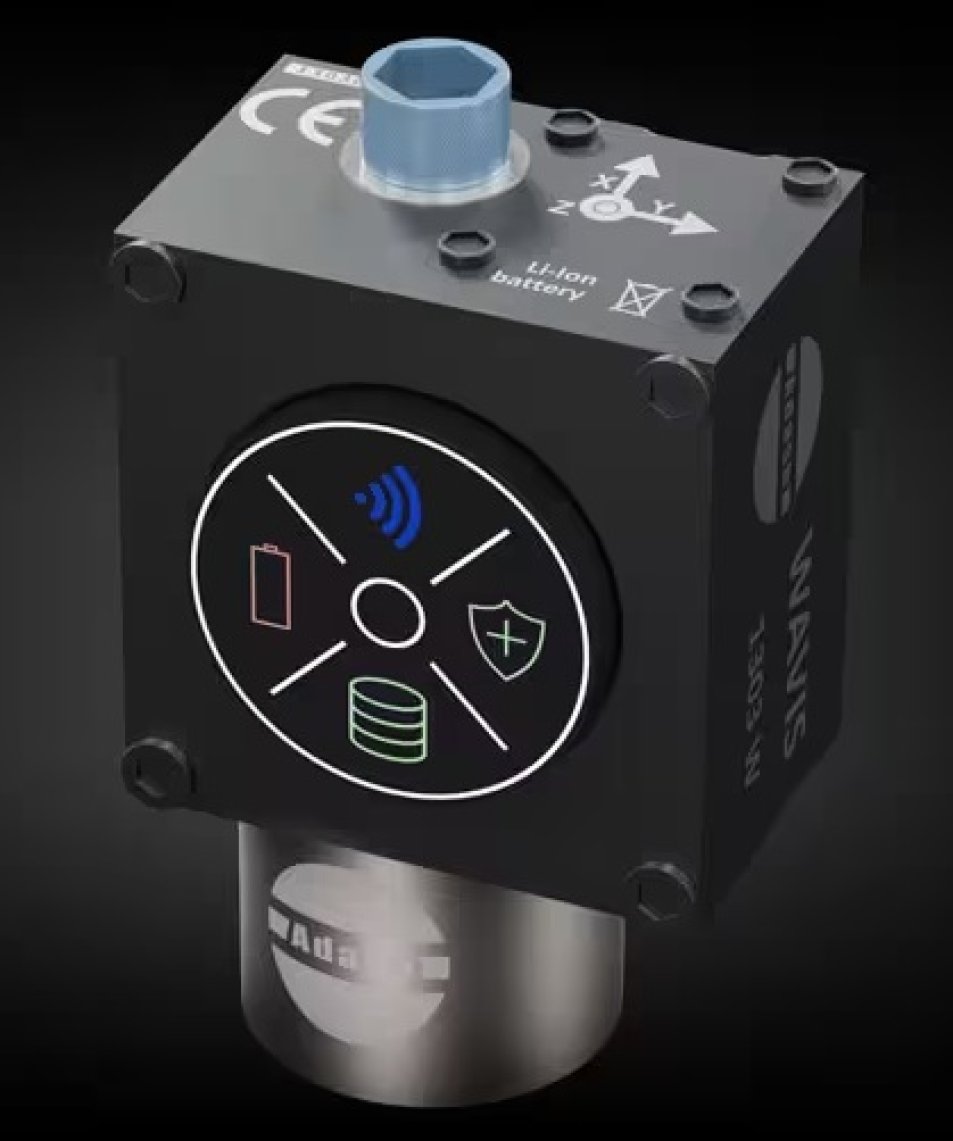

WAVIS, Wireless portable solution, 3 axis vibration measurement
About the product
Triaxial wireless sensor for real-time vibration measurement. For measurements on hazardous equipment at a safe distance. Compatible with VA5, a powerful analyzer from ADASH
Technical specifications WAVIS:
Z-direction acceleration sensor
Maximum range: ± 50 g
Frequency band: 0 ÷ 15 kHz
Noise level: up to 25 μg/√Hz for ± 50 g range
Maximum range: ± 50 g
Frequency band: 0 ÷ 15 kHz
Noise level: up to 25 μg/√Hz for ± 50 g range
Acceleration sensor for X and Y direction:
Maximum range: ± 16 g
Frequency band: 0 ÷ 6.4 kHz
Noise level: up to 75 μg/√Hz for ± 2 g range
Wireless communication interface:
Standard: IEEE 802.11 b/g/n Wi-Fi, WPA2
Frequency range: 2.4 to 2.4835 GHz
Transmit power: 19.5 dBm@11b, 16.5 dBm@11g, 15.5 dBm@11n
Working and storage conditions
Range: up to 15 meters
Battery Lifetime in standby: 8 hours
Battery life during measurement: 3 hours
Operating temperature: -10 to +70 °C Humidity: 10–100% RH
Protection rating: IP67, dustproof housing, resistant to immersion in water
Dimensions and weight:
Dimensions: 40 x 42 x 27 mm (W x H x D)
Weight: 110g WAVIS in the field Wireless portable solution
Maximum range: ± 16 g
Frequency band: 0 ÷ 6.4 kHz
Noise level: up to 75 μg/√Hz for ± 2 g range
Wireless communication interface:
Standard: IEEE 802.11 b/g/n Wi-Fi, WPA2
Frequency range: 2.4 to 2.4835 GHz
Transmit power: 19.5 dBm@11b, 16.5 dBm@11g, 15.5 dBm@11n
Working and storage conditions
Range: up to 15 meters
Battery Lifetime in standby: 8 hours
Battery life during measurement: 3 hours
Operating temperature: -10 to +70 °C Humidity: 10–100% RH
Protection rating: IP67, dustproof housing, resistant to immersion in water
Dimensions and weight:
Dimensions: 40 x 42 x 27 mm (W x H x D)
Weight: 110g WAVIS in the field Wireless portable solution
