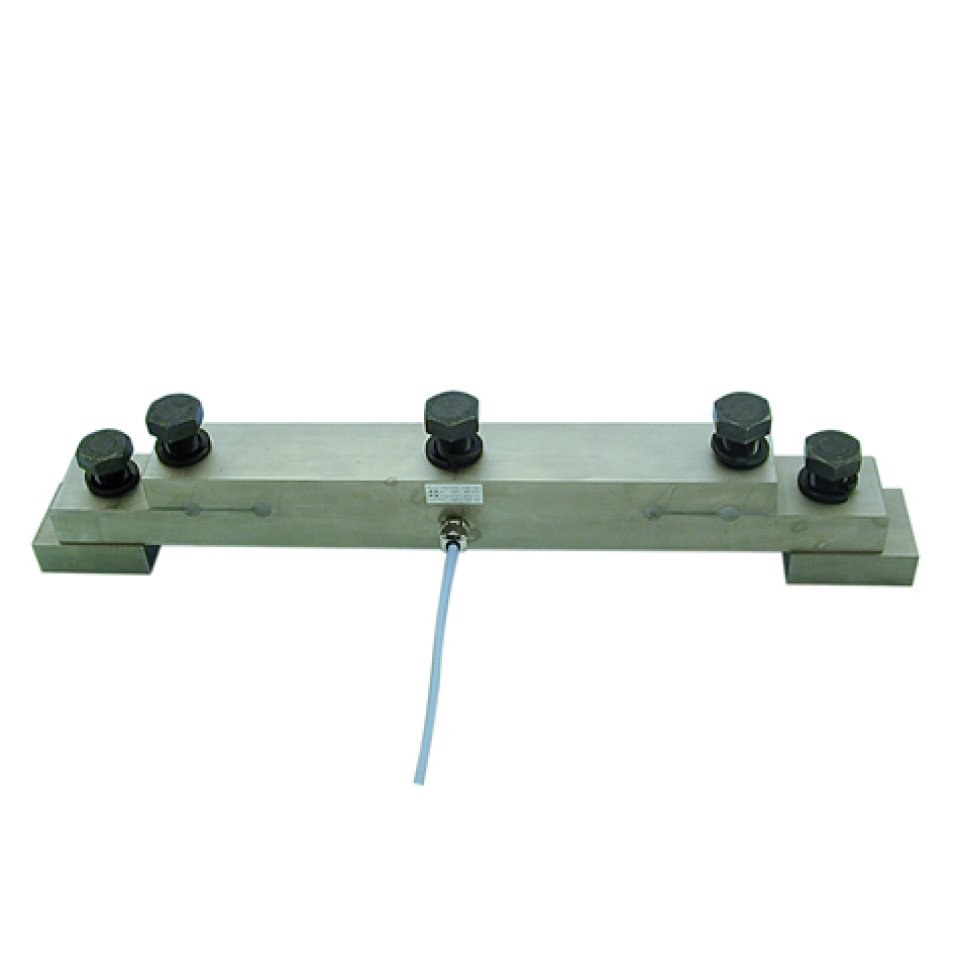

2625-2645 "On board" weighing load cell

About the product

Load cell specially designed for "on board" weighing on vehicles, trailers etc. Up to 100 tons. Option ATEX

Key information
- Very powerful design
- High resistance to shock
- Sealing degree: IP 67
- Low cost solution
- Easy to install (no stabilization required)
- Bolts and blocks, welded on, available
- Available option:
o ATEX intrinsic safety Ex II 1GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80°C Da

2625-2645 are perfectly designed for the following applications
- “On board” weighing system for trucks, lorries and trailers.
- "On board" overload protection system.
- Force measurement where the load is held with rigidity (e.g. weighing trains).

Capacities
2625 : 10 - 50 - 100 hours
2645 : 10 hrs
