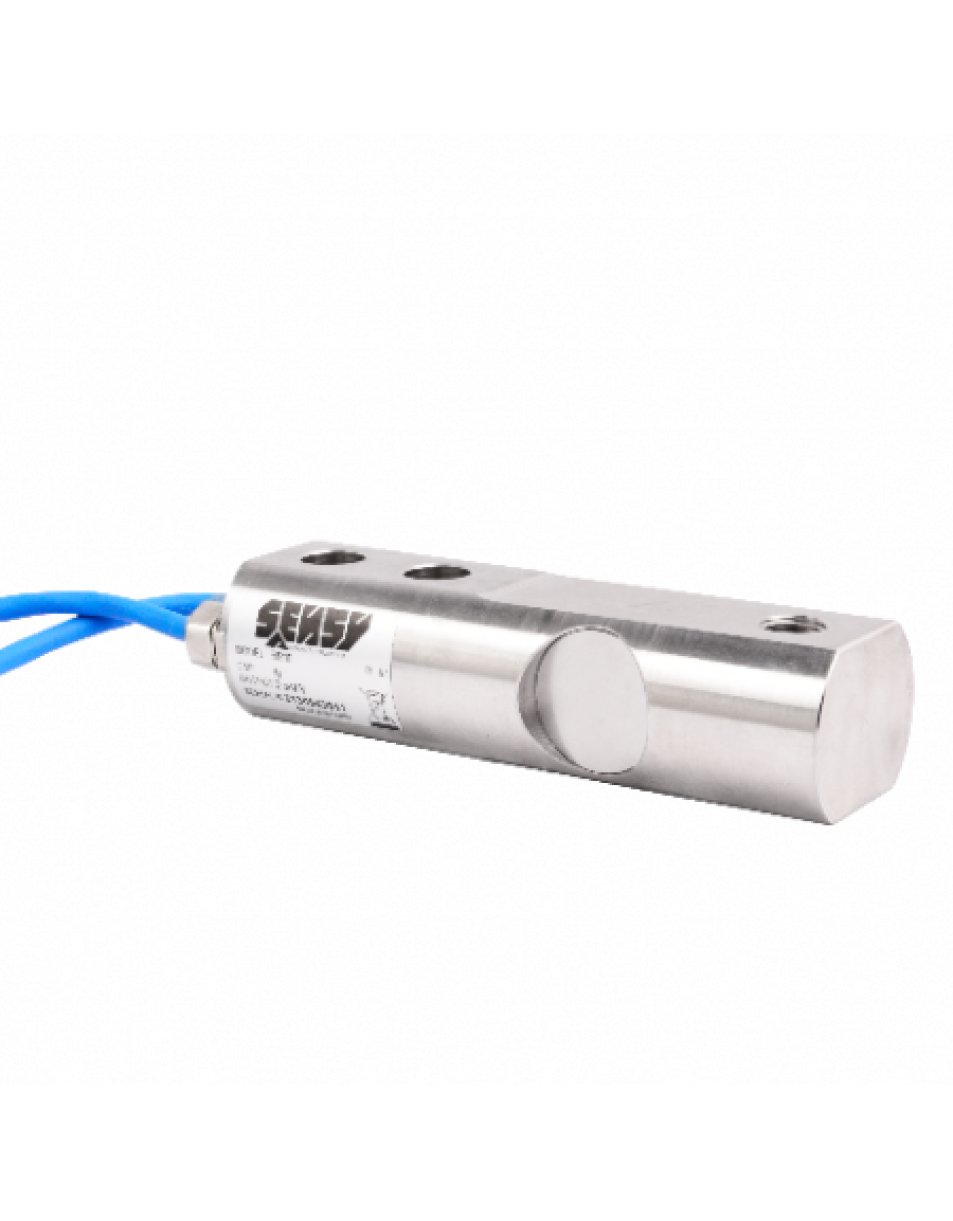

5510 Shear beam, load cell
About the product
Universal load cell that combines robust design, high accuracy and low cost. Up to 2t Option ATEX
Key information
- Stainless steel
- Sealing degree IP 67
- Cost-effective solution
- Powerful design
- Easy installation
- OIML/R60 up to 3000 d for scales in class III according to EN 45 501
- Mounting kit available for the following:
o stabilization without tension rods
o compensation of thematic extensions and errors in parallelism
- Options:
o ATEX intrinsic safety Ex II 1GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80°C Da
o amplified output (V or mA) and digital output signal (RS-232C, RS-485, USB)
The 5510 is perfectly designed for the following applications
- Low profile scales, pallets, platform scales
- Packaging, positioning and filling machines
- Reactors, tanks, vessels or hoppers weighing
Capacities
5510 : 0.5 - (0.75) - 1 - 1.5 - 2 h
Certificates and standards
-
OIML
-
CE
-
Atex
Manufacturer
About the product
Universal load cell that combines robust design, high accuracy and low cost. Up to 2t Option ATEX
Key information
- Stainless steel
- Sealing degree IP 67
- Cost-effective solution
- Powerful design
- Easy installation
- OIML/R60 up to 3000 d for scales in class III according to EN 45 501
- Mounting kit available for the following:
o stabilization without tension rods
o compensation of thematic extensions and errors in parallelism
- Options:
o ATEX intrinsic safety Ex II 1GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80°C Da
o amplified output (V or mA) and digital output signal (RS-232C, RS-485, USB)
The 5510 is perfectly designed for the following applications
- Low profile scales, pallets, platform scales
- Packaging, positioning and filling machines
- Reactors, tanks, vessels or hoppers weighing
Capacities
5510 : 0.5 - (0.75) - 1 - 1.5 - 2 h
