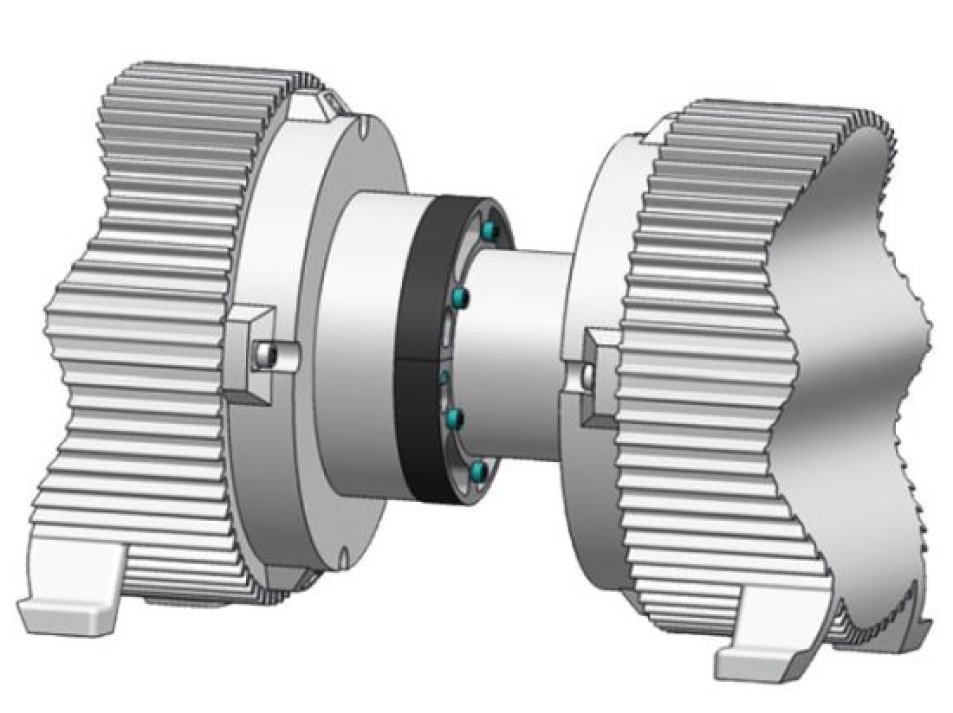

Assembly without free shaft end

  • no-free-shaft-end-with-shaft-shoulder-pw8rsx907pzk4h0yxw165c4kz339ah2i1gkr685dw8.jpg

About the product

The simplest solution for encoder conversion and encoder mounting where free shaft ends are not available.

For mounting situations where no free shaft end is available, incremental or absolute magnetic encoders are the optimal solution. With a split pulse wheel, they can be mounted easily and without time-consuming assembly and disassembly work, making them ideal for retrofitting and modernization where the encoder needs to be integrated into an existing system.

The pulse wheel is screwed either to the shaft shoulder or to a clamped centering ring. The scan head is attached to a customer-specific mounting device.

Manufacturer

Manufacturer Logo

About the product

The simplest solution for encoder conversion and encoder mounting where free shaft ends are not available.

For mounting situations where no free shaft end is available, incremental or absolute magnetic encoders are the optimal solution. With a split pulse wheel, they can be mounted easily and without time-consuming assembly and disassembly work, making them ideal for retrofitting and modernization where the encoder needs to be integrated into an existing system.

The pulse wheel is screwed either to the shaft shoulder or to a clamped centering ring. The scan head is attached to a customer-specific mounting device.
