Fats shaft, encoder on foot

About the product

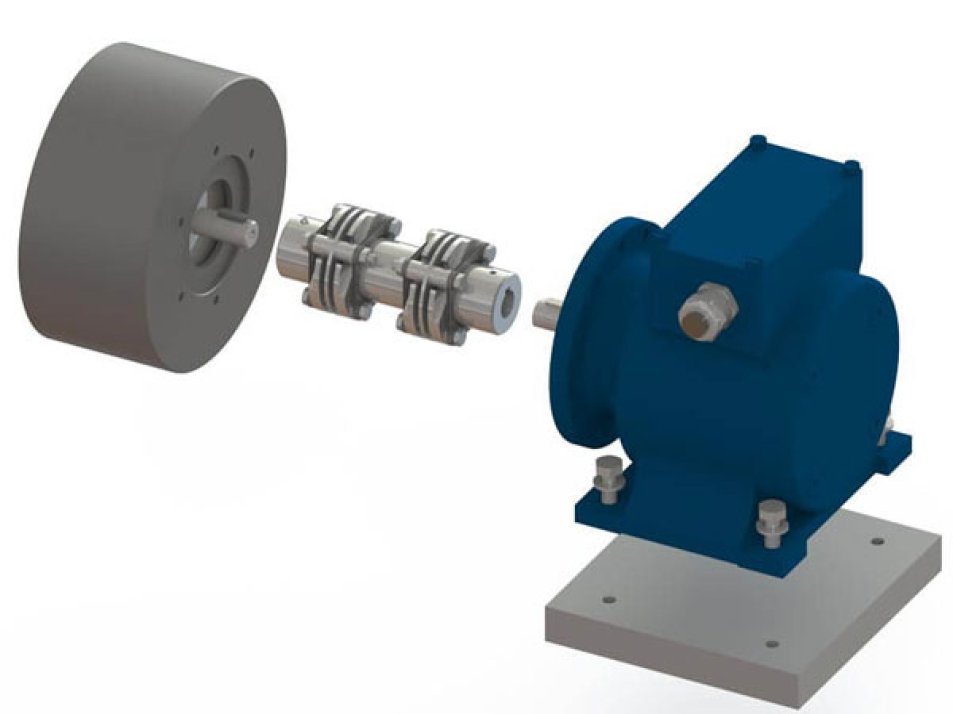

Encoder with fixed mounting and coupling to rotating shaft

For fixed shaft mounting with a foot, the rotary encoder is attached to the motor shaft using a suitable coupling. In addition, the encoder is screwed to a fixed base plate, which can be adapted if necessary.

Optional solutions are available for fixed shaft mounting with a foot in an insulated design against unwanted shaft currents. In addition, safety-certified mounting with fatigue-resistant safety components and fail-safe operation according to DIN EN ISO 13849-2 (PL e) is possible.
