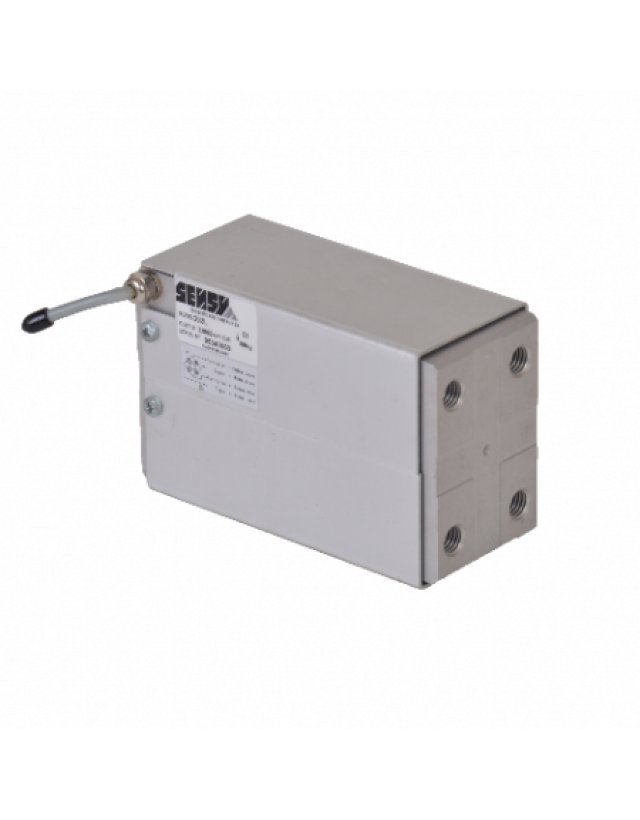

2022 SINGLE POINT LOAD CELL " OFF CENTER "

Single point load cell specially designed for the weighing of platforms and bunkers

Key features

- Designed for off-center load
- Maximum platform size : 800 x 800 cm
- Material : Anodized aluminium alloy
- Protection: IP 64
- Easy to install
- Complies with OIML/R60 up to 3000d for scales in class III according to EN 45 501
- Available options (non exhaustive list) :
     o ATEX intrinsic safety Ex II 1GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80°C Da
     o high service temperature (150 °C)
     o protection cover (option F)
     o reinforced protection against corrosion

The SENSY's load cells 2022 are perfectly designed to the following applications

- Industrial scales and platforms, retail and computing scales, ...
- Medium hoppers size weighing
- Filling, packaging and batching applications

CAPACITIES
2022 : 100 - 150 - (200) - 300 - 500 kg
Cover " F " in option
