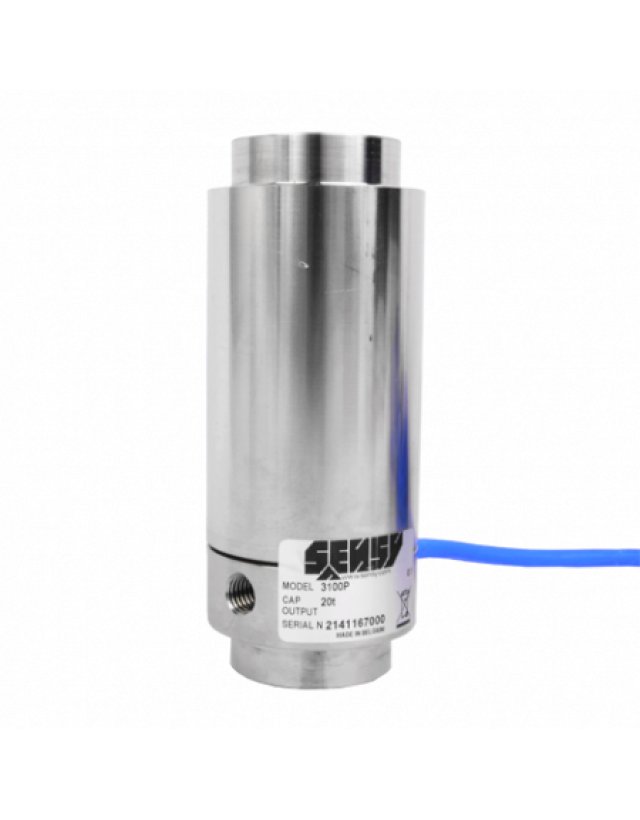

3100P PENDULAR COMPRESSION LOAD CELL

Compression load cell

Key features

- Canister, high capacity load cell (up to 500 tons)
- Totally made of stainless steel
- Protection IP 67
- Pendular technology - Self restoring
- Available in C1,5 (1'500 d) OIML / R 60
- Matched impedance and sensitivity (for parallel connection)
- A whole range of mounting accessories is available
- Available options (non exhaustive list) :
     o ATEX intrinsic safety Ex II 1GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80°C Da
     o high service temperature (up to180 °C)
     o protection IP68

The SENSY's load cells 3100P are perfectly designed to the following applications

- Weighbridges
- Silos, tanks or hoppers weighing
- High capacity reactors weighing
- Train scales etc…

CAPACITIES
3100P : (3) - 5 - (7.5) - 10 - (15) - 20 - 30 - 50 - (75) - 100 - (150) - 200 - 300 - 500 t
