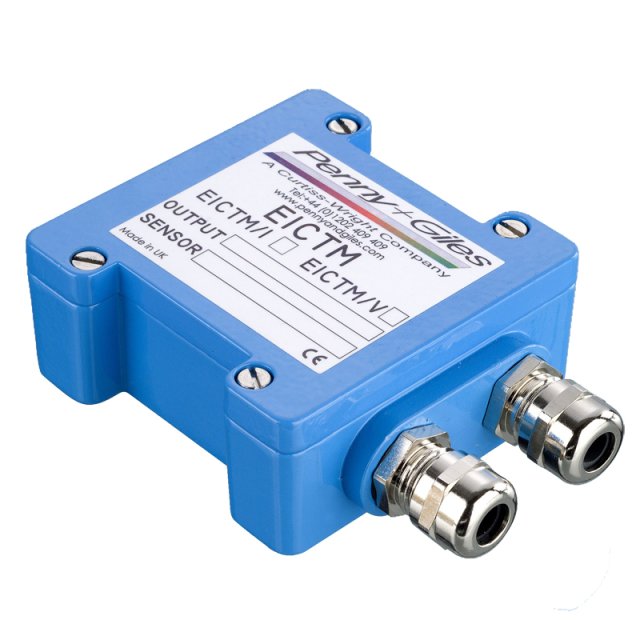

This module incorporates a high performance circuit that drives the transducer and provides a choice of output signals with zero and gain adjustment for simple user configuration. The module can be supplied in a choice of enclosures, with sealing to IP66 or IP68
The module operates from a 10-60 Vdc supply voltage and provides a range of outputs which can be configured by the user. The module is matched to the ICT or SLT190 transducer by a plug-in Sensor Calibration Module Card (SCMC).
Key features
• Designed for use only with Penny & Giles ICT and SLT190 series linear position transducers
• 10-60 Vdc input supply voltage
• 0,5 to 4,5 Vdc standard output signal
• Optional range of voltage output signals
• Optional 4-20mA current output signal
• Optional PWM output signal
• IP66 enclosure with DIN rail attachment detail or IP68 metal enclosure
• User adjustable gain and zero settings
• CE approved
• Rapid despatch
