U-ONE Generation I (LWL) – universal encoder system
About the product
For reliable measurement and monitoring of speed and position Encoder concept that offers significant cost savings, thanks to simple mechanical assembly, standardized electronic function modules and reduced wiring requirements.
Comprehensive features in just one device:
• Speed measurement • Position measurement • Electronic overspeed switch with programmable switching speed from 0.63 rpm • Wide range of bus interfaces • Electronic position switch • Graphical display of processes
- Modular encoder system U-ONE Generation I for position and speed monitoring

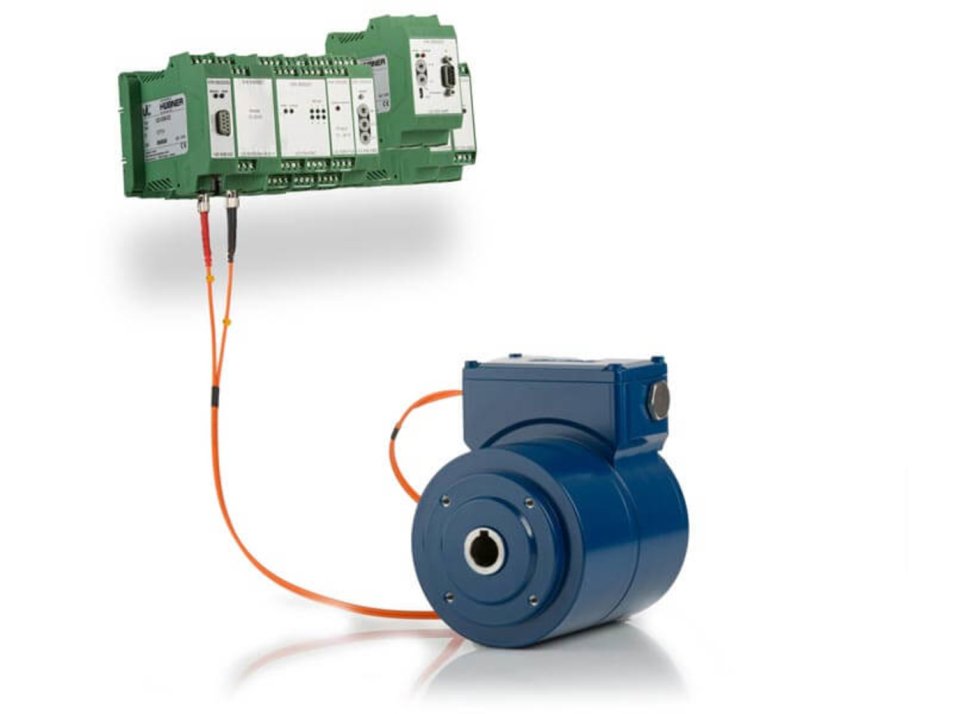

- Measurement directly on the application shaft, connection via 2 fiber optic cables to evaluation/function modules in the control cabinet
- ul shaft Ø 20 mm, solid shaft up to Ø 14 mm (flange or foot mounting)
- Resolution: 12 bit singleturn / 12 bit multiturn
- Interfaces: PROFIBUS, CAN bus, Ethernet-Modbus, SSI, incremental (HTL/TTL) Programmable switches (speed/position)
- Option: speed monitoring certified for safety applications up to
SIL 2 / PL d
For further product information see the manufacturer's website
Typical applications
-
Crane & lifting
-
Heavy industry
-
Energy
-
Winch
Certificates and standards
-
SIL 2
Manufacturer
About the product
For reliable measurement and monitoring of speed and position Encoder concept that offers significant cost savings, thanks to simple mechanical assembly, standardized electronic function modules and reduced wiring requirements.
Comprehensive features in just one device:
• Speed measurement • Position measurement • Electronic overspeed switch with programmable switching speed from 0.63 rpm • Wide range of bus interfaces • Electronic position switch • Graphical display of processes
- Modular encoder system U-ONE Generation I for position and speed monitoring
- Measurement directly on the application shaft, connection via 2 fiber optic cables to evaluation/function modules in the control cabinet
- ul shaft Ø 20 mm, solid shaft up to Ø 14 mm (flange or foot mounting)
- Resolution: 12 bit singleturn / 12 bit multiturn
- Interfaces: PROFIBUS, CAN bus, Ethernet-Modbus, SSI, incremental (HTL/TTL) Programmable switches (speed/position)
- Option: speed monitoring certified for safety applications up to
SIL 2 / PL d
For further product information see the manufacturer's website
