About the product

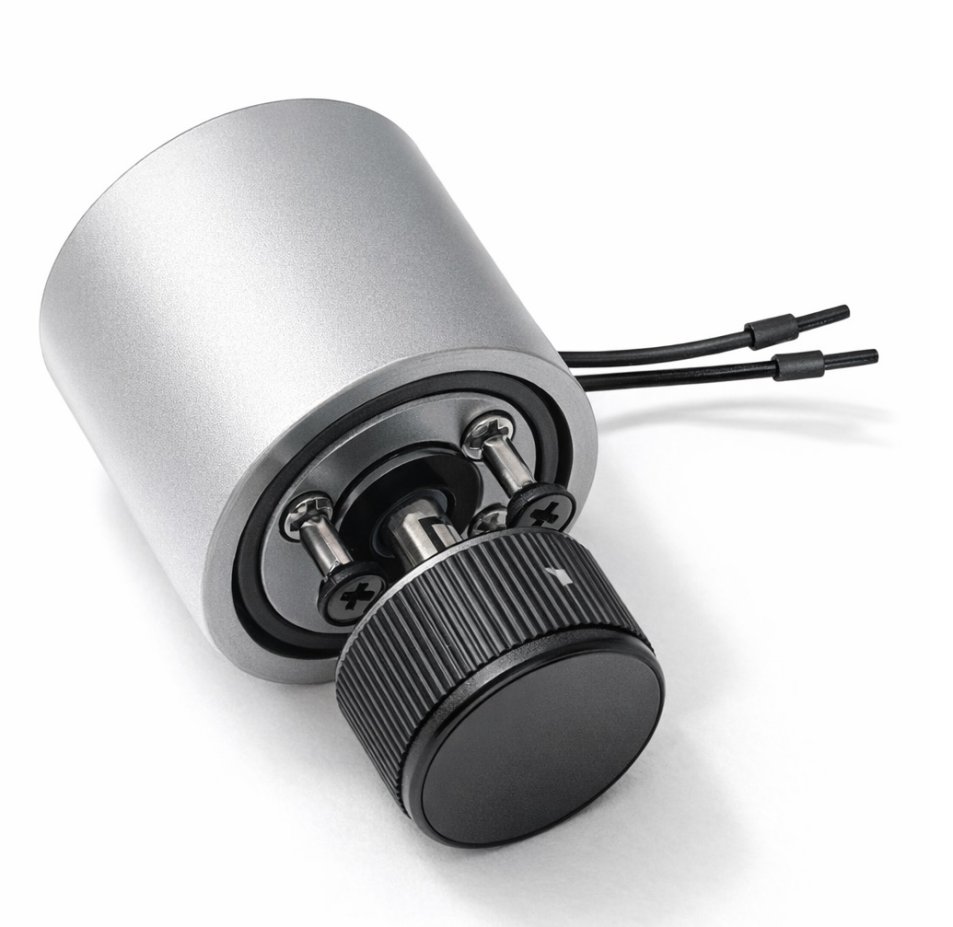

Rudder controls designed for panel mounting and have up to 3 separate outputs to suit all requirements in maritime applications
Absolute encoders with CANopen output signal and/or 4-20mA output for panel mounting for accurate commanding. Available with various mounting options. Non-contact Hall effect sensing without mechanical contact provides long life and linearity of ± 0.3° over a wide temperature range.
Designs with up to 3 separate signal outputs such as CANopen (DS-401 V 4:01) and 4 ... 20 mA are available.
A CiA software certificate for the CANopen protocol is available.
The housing shape and shaft connection can be made to customer specifications. This technology offers a robust design and an excellent price-performance ratio.
Build to comply with the latest Solas rules for main drives and rudder systems.
Power supply: 24 VDC —20% +25%
Power consumption: approx. 2 W
Operating temperature: -5 °C ... +70 °C
Storage temperature: -10 °C ... 85 °C
Vibration: IEC 68 section 2-6 diagram 2
Shock: IEC 68 section 2-27
Housing IP 67
Shaft input IP 65 according to DIN 40050
Measuring range: 360°
Resolution: 12 bit
Linearity: <±0.3% typical, <±0.5% max full scale
Typical applications
-
Ship's bridge & control room
Certificates and standards
-
SOLAS
