Temperature sensor TGL00921
About the product
Surface mounted PT1000 sensor, various mounting methods

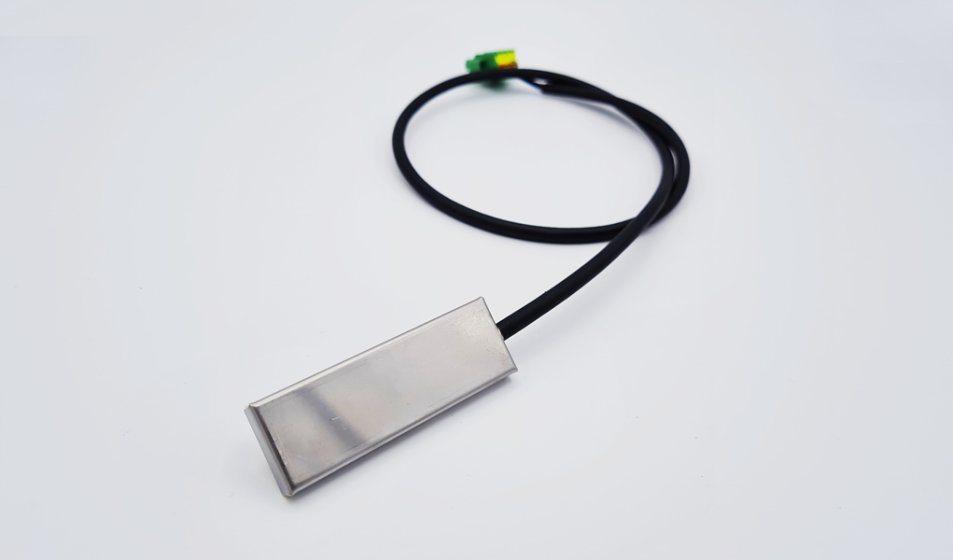

The TGL00921 temperature sensor is a surface-mounted PT1000 sensor with R and T output. Surface-mounted sensors in the TGL00921 series are attached to metal surfaces using integrated magnets and are attached to the end joint with adhesive or screw connection.
Technical data:
Dimensions: 22 x 67 x 6.5 mm
Supply voltage: 18...32VDC (typ. 24VDC)
Output signals: R and T Temperature range: -20...+85°C
Short-circuit proof
Power consumption: Max. 50mA
Housing: Stainless steel
Typical applications
-
Process
-
Condition monitoring
-
Machine & Propulsion
Manufacturer
About the product
Surface mounted PT1000 sensor, various mounting methods
The TGL00921 temperature sensor is a surface-mounted PT1000 sensor with R and T output. Surface-mounted sensors in the TGL00921 series are attached to metal surfaces using integrated magnets and are attached to the end joint with adhesive or screw connection.
Technical data:
Dimensions: 22 x 67 x 6.5 mm
Supply voltage: 18...32VDC (typ. 24VDC)
Output signals: R and T Temperature range: -20...+85°C
Short-circuit proof
Power consumption: Max. 50mA
Housing: Stainless steel
