Temperatur sensor TGL00921

Overflate montert PT1000 sensor ,ulike festemetoder

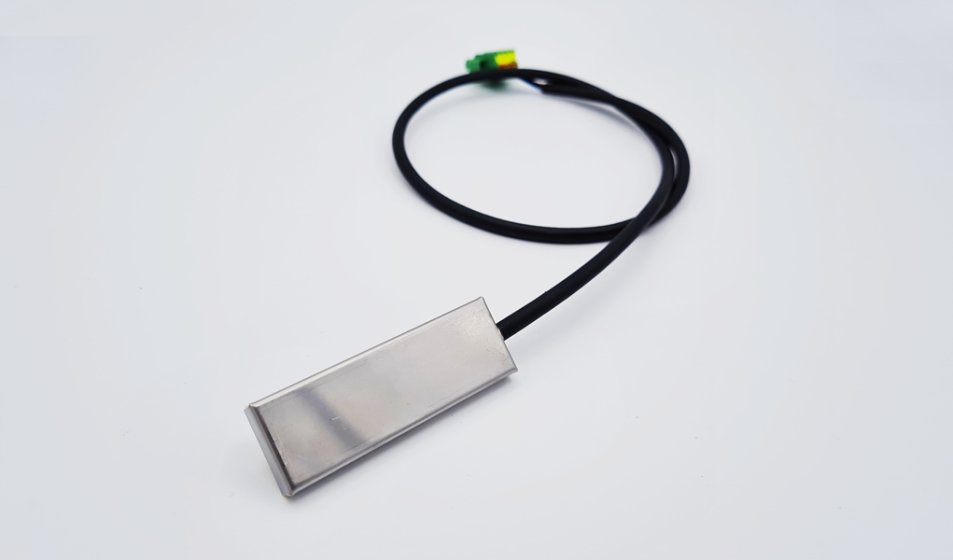

The temperature sensor TGL00921 is a surface mount sensor PT1000 with R and T output
Surface mount sensors of the TGL00921 series are attached to metallic surfaces by means of integrated magnets and end-fixed with adhesive or screw connection.

Technical data:
Dimensions: 22 x 67 x 6,5 mm
Supply voltage: 18...32VDC (typ. 24VDC)
Output signals: R and T
Temperature range: -20...+85°C
Short circuit proof
Current consumption: max. 50mA
Housing: stainless steel
