MA430 Absolute encoder with SSI, PRofibus or CAN

Absolute encoder for positioning purposes. The MA430-series is a range of absolute encoders supporting communication protocols as SSI, PROFIBUS or CAN . Additional incremental signals can also be provided with TTL or HTL output levels.

The extreme robust design and encapsulation of the encoder series enables it for use in Marine or Off-shore environements. Mines & Cranes are two other suitbale fields of operation for the series.

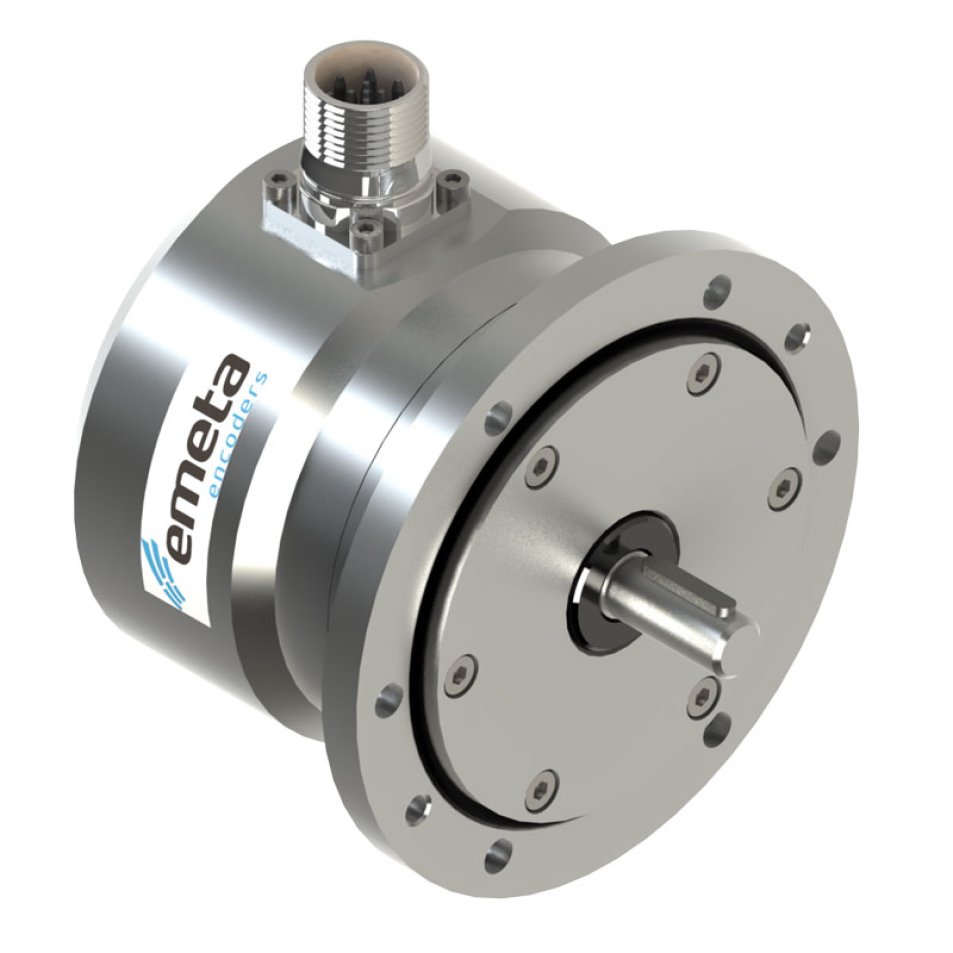

Mechanically is the MA430-series based on a ø11mm solid shaft with key-way to prevent slip. The mounting flange is compatible to previous tachogenerator interfaces including a B10 mounting flange. The entrie design is made out of high grade stainless steel.

FUNCTIONS OF THE ENCODER
Velocity Control
Absolute positioning
SUITABLE APPLICATIONS
Mines, Marine, Cranes and othe Environments with high risks of corrosion and wear.
Paper, Metallurgy or Windpower with high requirements in terms of useable life and relability
